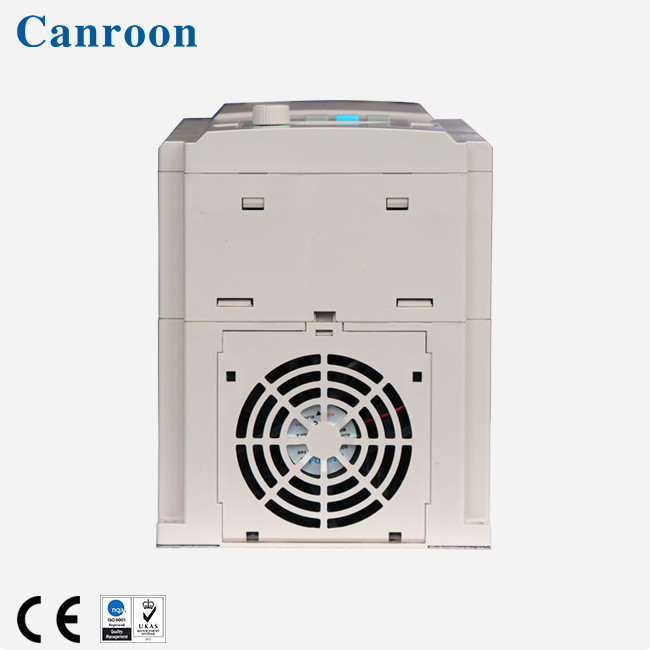

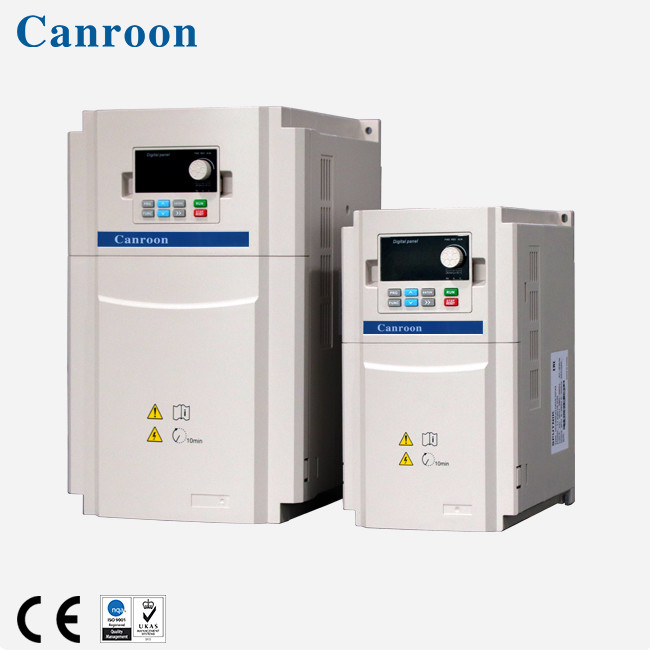

11kW Vector Frequency Inverter AC 1 Phase Electric Current Vector Control
Product Details
| Ambient Temperature | -10℃~+40℃ | Control Mode | V/F Control, Advanced V/F Control |
|---|---|---|---|
| Humidity | ≤95%RH(Non-condensing) | Input Frequency | 50/60Hz |
| Input Voltage | 380V/220V | Analog Input | 0.1% Of Maximum Output Frequency |
| Digital Setting | 0.01Hz | Protection Level | IP20/IP21/IP54/IP55 |
| Rated Current | 1.2A-1050A | Rated Power | 0.4kW-500kW |
| Speed Control Accuracy | ±0.5% | Speed Regulation Range | 1:100 |
| Speed Stability | ≤±0.5% | Torque Characteristic | Linear/Quadratic/S-shape |
| High Light | 11kW Vector Frequency Inverter,11kW AC Frequency Inverter |
||
Product Description
CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
Frequency inverters are electronic devices that let you control the speed of an AC motor. Background:
If electric motors or AC motors are operated directly from an AC voltage supply system, they can only
avail of a fixed speed based on the number of poles and the supply frequency of the power supply
system on location.
Inverter power range: 0.4kW to 500kW
Input voltage: 1 phase 220V, 230V, 240V fluctuate rate 15% plus-minus
Output voltage: 3 phase 0 to rated input voltage
Applications of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
Mining machinery, printing machinery,drawing machine, textile,wire and cable, metallurgy, machine tools,
packaging machinery, tobacco, paper making, stone machinery, food, chemical, transmission, wood
machinery, ceramic industry, building materials, and much more industries.
Product Feature of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
4 Control Mode:
1,V/F Control,
2,Advanced V/F Control,
3,V/F Separation Control,
4, Electric Current Vector Control.
High Running Freq.Max. 3000Hz.
Product model of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
CV900G series frequency inverter included advanced technology of flux vector control. High torque output of full frequency,
quick response, perfect load adaptability, high control precision of speed and good reliability, all of which ensure it to meet
high requirement of various field application.
It can easily drive and control motors, and is suitable for industries such as textiles, paper industry, metallurgy, chemicals,
fans and pumps, plastic machinery, and various automated production equipment.
|
Input |
Rated Voltage, Frequency |
3-phase(4T#sereis)380V;50/60HZ 1-phase(2S#series)220V;50/60HZ |
| Allowed Voltage Range |
3-phase(4T#series)320V~480V 1-phase(2S#series)160V~260V |
|
| Output | Voltage |
4T#series; 0~480V 2S#series; 0~260V |
| Frequency | Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ | |
| Overload Capacity |
G type: 110% for long-term, 150% for 1 min, 180% for 5s P type: 105% for long-term, 120% for 1 min, 150% for 1s |
|
| Control Mode |
V/F control, advanced V/F control, V/F separation control, electric current vector control |
|
Operation Wiring Diagram of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
Inverter wiring part, divided into the main loop and control loop. The user can lift the cover of the output/input terminals,
then can see the main loop terminal and the control loop terminal. Connect the wiring loop correctly as shown in the
figure below.
Optional Accessories of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
We can provide options such as LCD keyboard,Keyboard base,Keyboard connector,Brake unit,
Input/output filter,Brake resistor,Input and output reactor etc.
Product Application of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
The product is mainly applied to mining machinery,printing machinery, packaging machinery, tobacco, paper making,
stone machinery, food, chemical, transmission, wire and cable, metallurgy,Drawing machine, textile, machine tools,
wood machinery,ceramic industry, building materials, and much more industries.
Factory workshop
Exhibition
Certificate
Packaging:
1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements
Our Services
1. keep the quality first and make more products benefit to our customers' need
2.about our Online/Sale service
super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.
3.After-sale service
Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and
clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to
us, and we will try our best to support you.
FAQ:
1. Are you a trading company or manufacturer?
We are manufacturer in Shenzhen, China, specialized in frequency inverter and portable water cooling
induction heater/induction heating machine for many years.
2. What's the delivery time for sample and bulk order?
Normally for machines in stock, will deliver within 5 days, if not, 7-30 days according to your order.
3. What's your quality guarantee period?
12 months warranty
4. Can I get a lower price if I order large quantities?
Of course. Cheaper price with larger quantity
5. can you customize the machine for us?
Yes, of course, just tell me your detailed requirement, so I can suggest you most suitable model.
