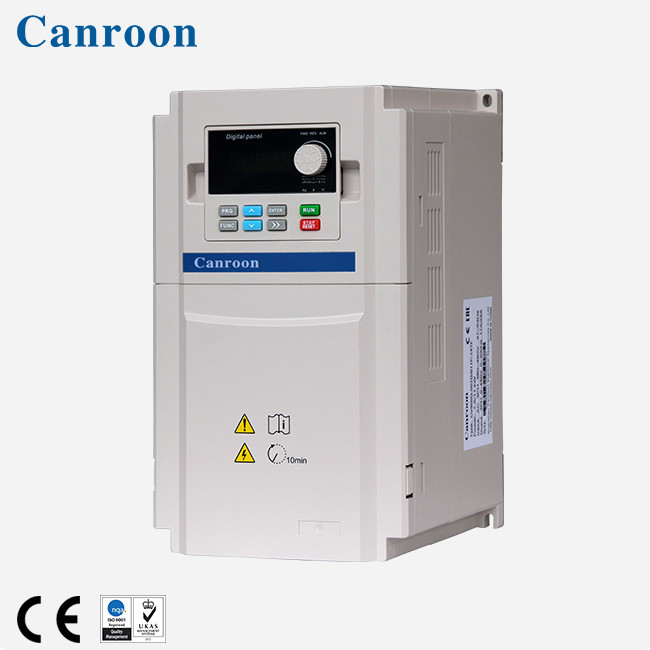

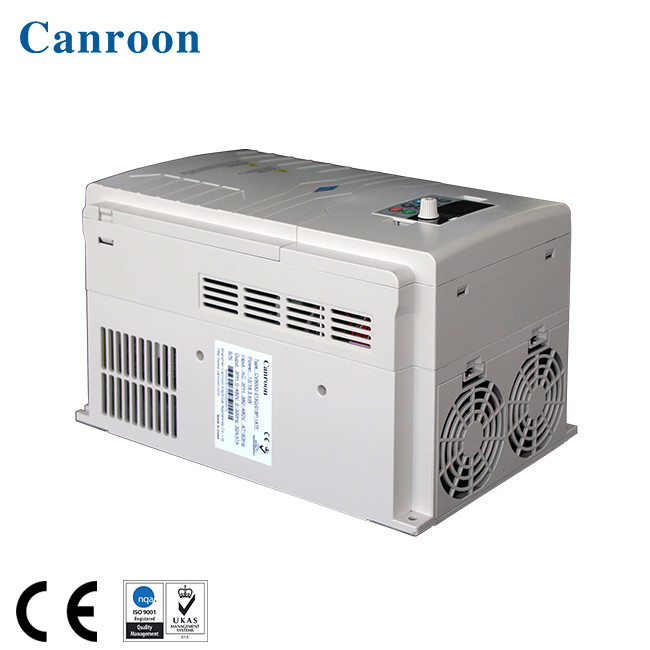

220V VFD Variable Frequency Drive F Control 3 Phase Inverter
Place of Origin Guangdong, China
Brand Name Canroon
Certification CE ISO9001
Model Number CV900G Series
Minimum Order Quantity 1
Price Negotiable price
Packaging Details carton box , Wooden box
Delivery Time 3-5 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 2000 Piece/Pieces per Week
Product Details
Model Number CV900G-003G-14TF Output Type Multiple
Output Current 13A Type DC/DC Converters
Ambient Temperature -10℃~+40℃ Rated Power 0.4kW-500kW
Control Mode V/F Control, Advanced V/F Control Input Rated Voltage 3-phase (14T) 380V; 1-phase (12S) 220V
Input Voltage 380V/220V Flux Restraint 0~100 0: Invalid
High Light

F Control 3 Phase Inverter

,

3 Phase Inverter 220V

,

3 Phase VFD Variable Frequency Drive

Product Description

VFD Variable Frequency Inverter Speed Controller For Three Phase Motor 3 phase inverter variable frequency drive



CV900G series frequency inverter included advanced technology of flux vector control. High torque output of full frequency,quick response, perfect load adaptability, high control precision of speed and good reliability, all of which ensure it to meet high requirement of various field application.

Inverter power range: 0.4kW to 500kW
Input Rated Voltage,Frequency : 3-phase (14T) 380V,47~63Hz; 1-phase (12S) 220V,47~63Hz
Input Allowed Voltage Range : 3-phase (14T) 320V~480V; 1-phase (12S) 160V~260V

Output Voltage : 14T,0~480V;12S,0~260V

Output Frequency : Low frequency mode: 0~300Hz; High frequency mode: 0~3000Hz



Applications of VFD Variable Frequency Inverter Speed Controller
Drawing machine, textile, packaging machinery, tobacco, paper making, stone machinery, mining machinery, printing machinery, food, chemical, transmission, wire and cable, metallurgy, machine tools, wood machinery, ceramic industry, building materials, and much more industries.



Product Feature of VFD Variable Frequency Inverter Speed Controller

4 Control Modes

V/F Control

advance V/F control

V/F separation control

electric current vector control

Ultralow Noise carrier freq. modulation: 1~16KHz
High Running Freq max. 3000Hz Control Protection timely & reliable
Excellent Torque Outpuit

V/F control (150% rated torque in 30Hz)

Electric current vector control (180% rated troque in 0.5Hz)

High Overload Capacity last for 60s with 150% rated torque



220V VFD Variable Frequency Drive F Control 3 Phase Inverter 0



Product model of VFD Variable Frequency Inverter Speed Controller



It can easily drive and control motors, and is suitable for industries such as textiles, paper industry, metallurgy, chemicals,

fans and pumps, plastic machinery, and various automated production equipment.





Input
Rated Voltage, Frequency

3-phase(4T#sereis)380V;50/60HZ

1-phase(2S#series)220V;50/60HZ

Allowed Voltage Range

3-phase(4T#series)320V~480V

1-phase(2S#series)160V~260V

Output Voltage

4T#series; 0~480V

2S#series; 0~260V

Frequency Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ
Overload Capacity

G type: 110% for long-term, 150% for 1 min, 180% for 5s

P type: 105% for long-term, 120% for 1 min, 150% for 1s

Control Mode

V/F control, advanced V/F control, V/F separation control, electric current vector control





220V VFD Variable Frequency Drive F Control 3 Phase Inverter 1



Operation Wiring Diagram of VFD Variable Frequency Inverter Speed Controller

Inverter wiring part, divided into the main loop and control loop. The user can lift the cover of the output/input terminals,
then can see the main loop terminal and the control loop terminal. Connect the wiring loop correctly as shown in the
figure below.



220V VFD Variable Frequency Drive F Control 3 Phase Inverter 2

Optional Accessories of VFD Variable Frequency Inverter Speed Controller

We can provide options such as LCD keyboard,Keyboard base,Keyboard connector,Brake unit,

Input/output filter,Brake resistor,Input and output reactor etc.

220V VFD Variable Frequency Drive F Control 3 Phase Inverter 3



Product Application of VFD Variable Frequency Inverter Speed Controller

The product is mainly applied to mining machinery,printing machinery, packaging machinery, tobacco, paper making,

stone machinery, food, chemical, transmission, wire and cable, metallurgy,Drawing machine, textile, machine tools,

wood machinery,ceramic industry, building materials, and much more industries.

220V VFD Variable Frequency Drive F Control 3 Phase Inverter 4

Factory workshop



220V VFD Variable Frequency Drive F Control 3 Phase Inverter 5



Packaging:

1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements


220V VFD Variable Frequency Drive F Control 3 Phase Inverter 6

Exhibition

220V VFD Variable Frequency Drive F Control 3 Phase Inverter 7

Certificate

220V VFD Variable Frequency Drive F Control 3 Phase Inverter 8

FAQ:



1. Are you a trading company or manufacturer?

We are a leading manufacturer of induction heating machine & VFD, located in Shenzhen, China.

2. What information should I provide when making enquiry? How to confirm the suitable equipment and solution for me?

Please provide detailed information including:

(1) application ___;

(2) workpiece: material___, dimension___, heating area___,pictures&drawing___;

(3) heating requirement: max. heating temp___, heating rate___, etc;

(4) local electricity supply for equipment running: ___V, ___Hz.

3. What's the leading time for one set, and larger quantities?

Normally we have stock of the induction heating power source, but customized inductor/coils require 15 working days.

4. What's your quality guarantee period?

12 months warranty.

5. Can I have a sample tested, and visit your factory?

We welcome you to send us sample for heating test, and will offer you test video and data.

Your visit will be highly welcomed. We will guide you through our production line, PCB & machine test procedures, burn-in room, and make heating demo for you.

6. What is your company's expect for business cooperation?

Canroon is looking forward to have a solid long-term business cooperation with you, and will offer you our continuously support in various ways.

7. What many series product do you offer in induction heating?

Canroon developed different induction heating equipment for different applications and industies.



Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.

3.After-sale service

Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and

clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to

us, and we will try our best to support you.
