Output Voltage | Three-phase AC 323V- 528V | Maximum Speed | Converted To 2000Hz According To The Output Frequency |
---|---|---|---|
Ambient Temperature | -10℃-40℃ When The Temperature Exceeds 40°C, The Usage Needs To Be Derated. | Carrier Frequency | 2-15kHz |
Output Voltage | Three-phase 0 - 480V (Maximum Output Voltage Is The Same As Input Voltage) | Ambient Humidity | 5-90%RH Non-condensing |
Motor Protection | Overload Protection, Supports KTY, PTC Temperature Protection | Power Rating | 7.5kW-320kW |
Highlight | 3 Phase Variable Frequency Drive Inverter,Overload Protection Variable Frequency Drive Inverter,Overload Protection 3 Phase Frequency Inverter |
Frequency Inverter High-Precision Position Setting Permanent Magnet Synchronous Motors 3-Phase 380V 1-Phase 220V
Product Description:

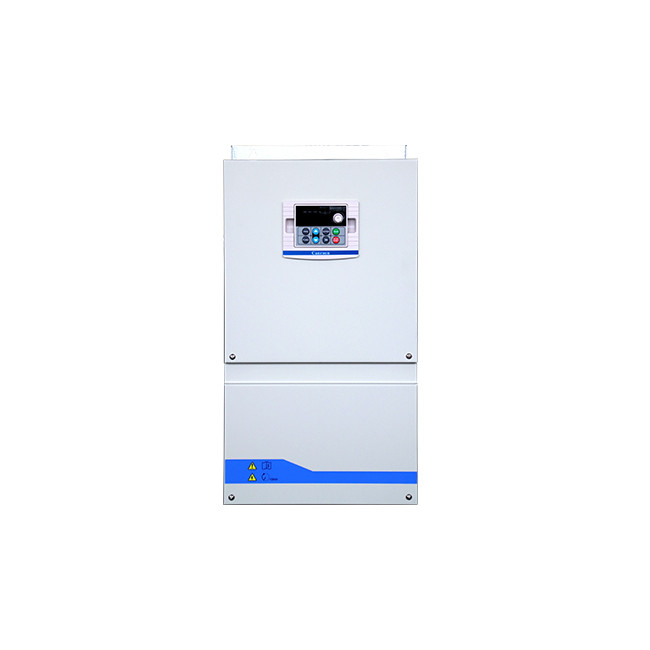

The CV900A PMSM Drive is a high-performance universal current vector Permanent Magnet Synchronous Motor (PMSM) driver, designed as a Vector Frequency Inverter. It is capable of providing an output power up to 6.7kw at a frequency of 0.5-500Hz. Featuring a wide range of functions, including CAN, RS485 communication, digital and analog frequency setting, overload protection, KTY and PTC temperature protection, this product is ideal for applications requiring high-level protection, precision and accuracy. The CV900A has an ambient temperature range of -10℃-40℃ and when the temperature exceeds 40°C, the usage needs to be derated. It is also designed to meet the protection level of IP20.
Features:
- Product Name: Vector Frequency Inverter
- Rated Input Current: 20-580A
- Input Frequency Resolution: Digital Setting: 0.01Hz, Analog Setting: Highest Frequency X 0.025%
- Input frequency: 50/60Hz+5%
- Cooling method: Air Cooling With Fan Control
- Ambient temperature: -10℃-40℃ When The Temperature Exceeds 40°C, The Usage Needs To Be Derated.
- CV900A PMSM Drive
- Electro-hydraulic servo flow and pressure PID control
- Vector Frequency Inverter
Technical Parameters:
Parameters | Unit |
Rated Input Current | 20~580A |
Input frequency | 50/60Hz+5% |
Motor Protection |
Overload Protection, Supports KTY, PTC Temperature Protection |
Cooling method | Air Cooling With Fan Control |
Ambient temperature |
-10℃-40℃ When The Temperature Exceeds 40°C, The Usage Needs To Be Derated. |
Protection level | IP20 |
Ambient Humidity | 5-90%RH Non-condensing |
Output voltage |
Three-phase 0 - 480V (Maximum Output Voltage Is The Same As Input Voltage) |
Carrier Frequency | 2-15kHz |
Overload Capacity | 150% Rated Output Current For 60 Seconds |

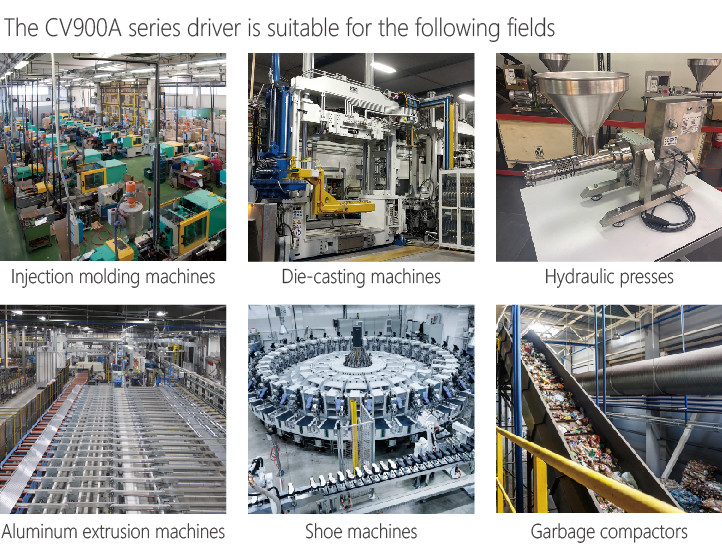

Application |
Applied in servo drives for hydraulic control direction, Built- in CAN communication interface, driver is suitable for various automation production equipment |
Applications:
Canroon's Vector Frequency Inverter, Model Number CV900A, is a perfect choice for your industrial needs. It is manufactured in Shenzhen, China and is certified with CE and ISO9001. With minimum order quantity of 1, it can be purchased at a negotiated price and is packaged in wooden box or carton box for delivery within 3-7 days. Various payment terms such as L/C, T/T, Western Union and Paypal are available. 3000 Piece/Pieces per Week are available for supply. The Vector Frequency Inverter has air cooling with fan control and operates in ambient temperatures between -10℃-40℃. When the temperature exceeds 40°C, the usage needs to be derated. It has a rated input current of 20~580A and the ambient humidity should be between 5-90%RH Non-condensing. It has a built-in CAN communication interface and is suitable for servo drives for hydraulic control direction. The input frequency resolution is 0.01Hz for digital setting and highest frequency X 0.025% for analog setting.
Support and Services:
At Vector Frequency Inverter, we are committed to upholding the highest standards of customer service. We offer technical support and service for all our products and related technologies.
Our technical support team is available to answer any questions you may have about our Vector Frequency Inverter products. Our team is knowledgeable, experienced, and dedicated to helping you find the best solution for your needs.
If you need assistance with installation, repair, or maintenance of your Vector Frequency Inverter products, we offer professional service and repair options. We understand the importance of having your equipment working correctly and efficiently, so we will work quickly and diligently to get your problem resolved. You can contact us at service@vectorfrequencyinverter.com or call us at 1-800-123-4567 for more information.
FAQ:
- Q: What is a Vector Frequency Inverter?
- A: Vector Frequency Inverter is a type of AC drive which is developed for precise speed and torque control of three-phase induction motors.
- Q: What is the brand name and model number of the Vector Frequency Inverter?
- A: The brand name is Canroon and the model number is CV900A.
- Q: Where is the Vector Frequency Inverter manufactured?
- A: The Vector Frequency Inverter is manufactured in Shenzhen, China.
- Q: What certifications does the Vector Frequency Inverter have?
- A: The Vector Frequency Inverter is certified with CE and ISO9001.
- Q: What is the minimum order quantity for the Vector Frequency Inverter?
- A: The minimum order quantity for the Vector Frequency Inverter is 1.
