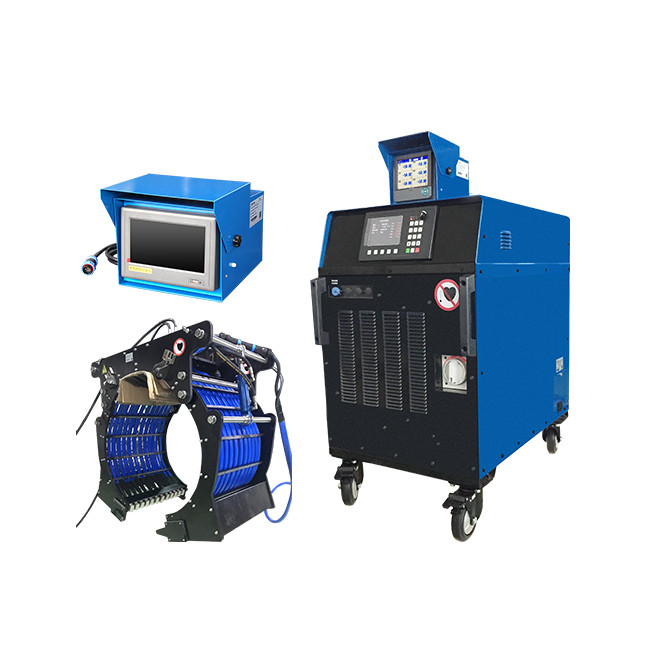

CE Induction Heating Welding Preheat 3 Phase High Frequency Induction Heater
Product Details
| Induction Coil | Customized | Temperature Range | 50-1000℃ |
|---|---|---|---|
| Voltage | 3 Phase, 380-460v, 50/60HZ, | Heating Time | 0-999s |
| Temperature Control | Digital Display | Thermocouple | 6 PCS |
| Input Power | 10-160KW | Frequency | 3-35kHZ |
| High Light | CE Induction Heating Welding Preheat,3 Phase Induction Heating Welding Preheat,3 Phase High Frequency Induction Heater |
||
Product Description
Induction Preheating Welding Continuous/Pulse 3-35kHz
Product Description:
Induction Preheating Welding is a highly reliable and efficient product used in onshore and offshore pipelines. It uses precise temperature control and accurate digital display to ensure high-quality welding. The frequency of the induction coil is adjustable from 3-35kHz and can be customized according to different requirements. The input power is adjustable from 10-160KW, which ensures efficient and stable operation. Moreover, it comes with a 1 year warranty, providing you with a worry-free experience. This product is widely used in the industries of Pre-heat Welding (PWHT), which makes it the ideal choice for your pipeline project.
Features:
- Product Name: Induction Preheating Welding
- Voltage: 3 Phase, 380-460v, 50/60HZ
- Frequency: 3-35kHZ
- Input Power: 10-160KW, with 40KW available for using automatic pipe welding machine, suitable for Onshore Offshore pipeline installation
- Temperature Control: Digital Display
- Warranty: 1 Year
Technical Parameters:
| Parameter | Value |
|---|---|
| Frequency | 3-35kHZ |
| Voltage | 3 Phase, 380-460v, 50/60HZ |
| Input Power | 10-160KW (40KW using automatic pipe welding machine) |
| Warranty | 1 Year |
| Protection Level | IP54 |
| Heating temperature | Can Be High As 788℃ |
| Temperature Control | Digital Display |
| Material | Carbon Steel/Stainless Steel/Copper/Aluminum |
| Thermocouple | 6 PCS |
| Temperature Range | 50-1000℃ (Post Weld Heat Treatment) |
Applications:

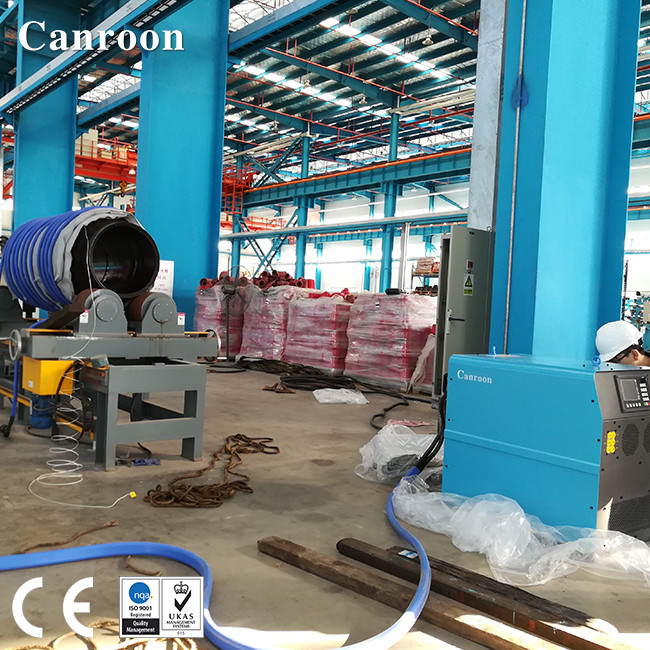

Canroon's CR2000 induction preheating welding machine is a reliable, energy-efficient machine with a digital control system and a high-performance air cooling system. It is designed for onshore and offshore pipeline welding, providing precise temperature control and protection level up to IP54. The input power ranges from 10 to 160KW, allowing the machine to work steadily for a long time. With a digital display, the temperature can be set precisely and conveniently to meet different welding needs. Moreover, the machine can work in both continuous and pulse modes, ensuring the stability and quality of the welding process.
Customization:
Induction Preheating Welding
Brand Name: Canroon
Model Number: CR2000
Place of Origin: Shenzhen, China
Temperature Range: 50-1000℃
Protection Level: IP54
Heating Time: 0-999s
Cooling System: Air Cooling
Voltage: 3 Phase, 380-460v, 50/60HZ
Keywords
Oil and gas pipeline construction
Induction Preheating Welding
Can be as high as 788℃
Support and Services:
Induction Preheating Welding Technical Support and Service
If you have any questions about our Induction Preheating Welding products, please contact us by phone or email. Our customer service representatives are available to assist you in all aspects of product use and installation.
We also offer comprehensive training and technical support for our Induction Preheating Welding products. Our training courses cover all aspects of product use and installation, as well as troubleshooting and maintenance.
For more information on our Induction Preheating Welding products, please visit our website or contact us directly. We look forward to helping you get the most out of your Induction Preheating Welding product.
FAQ:
Q1. What is Canroon Induction Preheating Welding?
A1. Canroon Induction Preheating Welding is a welding machine with model number CR2000 made in Shenzhen, China. It uses induction heating to preheat metal objects before welding, making the welding process more efficient and precise.
Q2. What are the benefits of using Canroon Induction Preheating Welding?
A2. Canroon Induction Preheating Welding provides several benefits, including improved weld quality, faster welding time, improved weld penetration, and increased weld strength. It also helps reduce the risks of weld defects.
Q3. What materials can Canroon Induction Preheating Welding be used on?
A3. Canroon Induction Preheating Welding is suitable for use on most metals, including steel, aluminum, copper, brass, and titanium.
Q4. What is the recommended power supply for Canroon Induction Preheating Welding?
A4. Canroon Induction Preheating Welding requires a power supply of 220V/50Hz or 380V/50Hz.
Q5. Is Canroon Induction Preheating Welding safe to use?
A5. Yes, Canroon Induction Preheating Welding is designed to be safe and reliable. It has been tested and certified for use in industrial and commercial applications.
