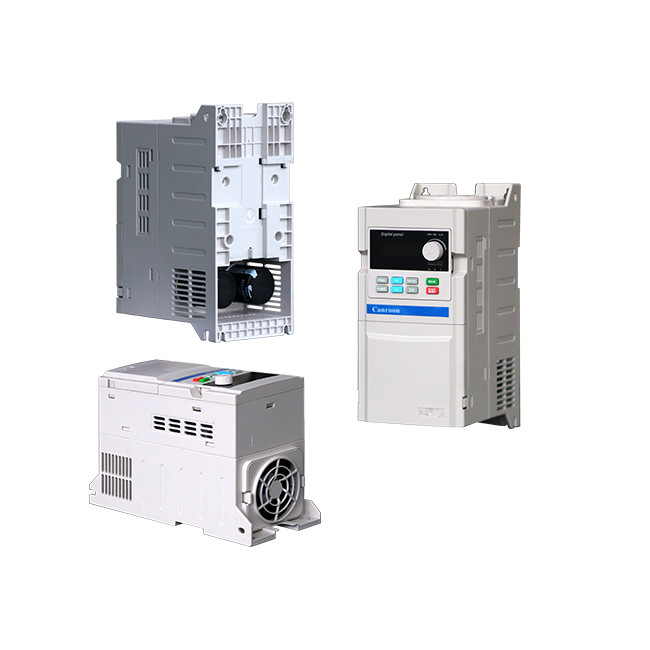

CE Vector Frequency Inverter Three Phase 500kW Stronger Anti Pollution
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE ISO9001
Model Number CV900N
Minimum Order Quantity 1
Price negotiated price
Packaging Details wooden box , carton box
Delivery Time 3-7 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 3000 Piece/Pieces per Week
Product Details
Input Voltage 3-phase : 320V~480V 1-phase : 160V~260V Input Frequency Resolution Digital Setting: 0.01Hz, Analog Setting: Highest Frequency X 0.025%
Low Noise Running Carrier Frequency 0.5kHz~16.0kHz Continuous Adjustable, Minimize Motor Noise Output Voltage Three-phase AC 323V- 528V
Maximum Speed Converted To 2000Hz According To The Output Frequency Rated Output Current 2.4~930A
Protection Level IP20 Input Frequency 47-63Hz
Highlight

CE Vector Frequency Inverter

,

500kW Vector Frequency Inverter

,

500kW Three Phase Frequency Inverter

Product Description

Advanced Vector Frequency Conversion Control Power Rating 0.4kW-500kW Rated Output Current 2.4-930A Output Frequency 0-5



Product Description:

Introducing the Vector Frequency Inverter, a refined design that is stronger and more durable than ever before. The inverter adopts advanced vector frequency conversion control technology, offering excellent performance and reliability. With an ambient temperature range from -10°C to +40°C, the Vector Frequency Inverter features a digital setting with 0.01Hz frequency resolution and an analog setting with the highest frequency x 0.025%. Input frequency is 47-63Hz and the inverter can run with low noise, with the carrier frequency adjustable from 0.5kHz to 16.0kHz. Input voltage is 3-phase 320V~480V and 1-phase 160V~260V. For maximum safety and efficiency, please run the Vector Frequency Inverter in derated capacity when the ambient temperature is 40°C-50°C.



Features:

  • Product Name: Vector Frequency Inverter
  • Rated output Current: 2.4~930A
  • Output Frequency: Vector Control: 0~500HZ V/F Control: 0~5000Hz
  • Input Frequency Resolution: Digital Setting: 0.01Hz, Analog Setting: Highest Frequency X 0.025%
  • Motor Protection: Overload Protection, Supports KTY, PTC Temperature Protection
  • Overload Capacity: G Type: 150% Rated Current 60s, 180% Rated Current 3s: P Type: 120% Rated Current 60s, 150% Rated Current 3s
  • Large Torque at Low Frequency, applied in Plastic Machinery and other Industry Equipment
  • Independent Air Duct Design, Stronger Anti-pollution Ability



CE Vector Frequency Inverter Three Phase 500kW Stronger Anti Pollution 0



Technical Parameters:

 Product Name  High Performance Vector Frequency Inverter
 Output Voltage  Three-phase AC 323V- 528V
 Output Frequency  Vector Control: 0~500HZ V/F Control: 0~5000Hz
 Rated output Current  2.4~930A
 Ambient temperature  -10°C ~ +40°C (please Run The VFD In Derated   Capacity  When Ambient Temperature Is 40°C-50°C)
 Motor Protection  Overload Protection, Supports KTY, PTC Temperature   Protection
 Position Setting  CAN, RS485 Communication
 Maximum Speed  Converted To 2000Hz According To The Output   Frequency
 Cooling method  Air Cooling With Fan Control
 Low Noise Running  Carrier Frequency 0.5kHz~16.0kHz Continuous   Adjustable, Minimize Motor Noise
 Design

 Refined design, stronger and more durable, adopts   advanced vector frequency conversion control

 technology.



Applications:

The Canroon CV900N Vector Frequency Inverter is designed to provide high performance and accuracy for a wide range of industrial applications. Featuring a high speed stability accuracy, fast dynamic torque response, and overload protection, the CV900N is the perfect solution for a variety of industrial motor control needs. The Canroon CV900N Vector Frequency Inverter is certified CE and ISO9001, with a minimum order quantity of one, and a negotiated price. It features a cooling method of air cooling with fan control, input frequency of 47-63Hz, power rating of 0.4kW-500kW, and motor protection of overload protection, as well as supporting KTY and PTC temperature protection. The vector frequency inverter is able to run in an ambient temperature of -10°C to +40°C, though it is recommended to run the VFD in derated capacity when the ambient temperature is 40°C-50°C. The Canroon CV900N Vector Frequency Inverter is the perfect choice for customers who are seeking high performance, accuracy, and reliability in their industrial motor control needs. With a supply ability of 3000 pieces per week and fast delivery time of 3-7 days, the Canroon Vector Frequency Inverter is an excellent choice for those seeking a reliable and high performing vector frequency inverter.



CE Vector Frequency Inverter Three Phase 500kW Stronger Anti Pollution 1



Support and Services:

Vector Frequency Inverter Technical Support and Service

Vector Frequency Inverter offers comprehensive technical support and service to ensure the optimal performance of your product. Our team of experienced engineers and technicians are available to provide troubleshooting, repairs and maintenance services. We also provide comprehensive training and documentation to support the use of the product.

We offer a range of support services, including:

  • On-site technical support and service
  • Remote diagnosis and troubleshooting
  • Repair services
  • Preventive maintenance
  • Software updates
  • Product training
  • Documentation and user manuals

For more information about our technical support and services, please contact us.



CE Vector Frequency Inverter Three Phase 500kW Stronger Anti Pollution 2



FAQ:

  • Q: What is the brand name of Vector Frequency Inverter?
    A: The brand name of Vector Frequency Inverter is Canroon.
  • Q: What is the model number of Vector Frequency Inverter?
    A: The model number of Vector Frequency Inverter is CV900N.
  • Q: Where is Vector Frequency Inverter manufactured?
    A: Vector Frequency Inverter is manufactured in Shenzhen, China.
  • Q: Does Vector Frequency Inverter have certifications?
    A: Yes, Vector Frequency Inverter has CE and ISO9001 certifications.
  • Q: What is the minimum order quantity for Vector Frequency Inverter?
    A: The minimum order quantity for Vector Frequency Inverter is 1.



CE Vector Frequency Inverter Three Phase 500kW Stronger Anti Pollution 3
