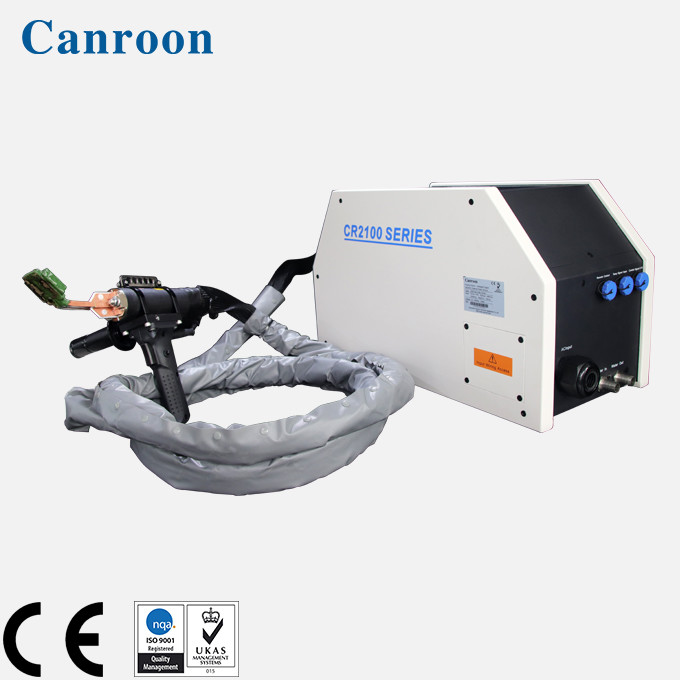

Copper Induction Brazing Machine 3 Phase Portable Brazing Machine
Product Details
| Heating Mode | Induction Heating | Power | High Frequency |
|---|---|---|---|
| Output Frequency | 10-40KHz | Weight | 20KG |
| Temperature Control | Digital Display | Induction Coil | Copper |
| Induction Coil Size | Customizable | Input Power | 10KVA |
| Highlight | Induction Brazing Machine 3 Phase,3 Phase Portable Brazing Machine,Copper Induction Brazing Machine |
||
Product Description
Induction Heating Stainless Steel/Copper/Aluminum With 3-Phase/400V(±20%) Voltage
Product Description:
The Induction Brazing Machine is the ideal tool for metal heat treatment. It is designed to meet the needs of businesses that require a small size and high power. This machine features a low frequency of 10-40KHz and a 10KW power consumption. It is customizable to suit the needs of each customer, with the induction coil being made from copper and a digital display for temperature control. This machine is the perfect choice for any business that wants to achieve high-quality results in metal heat treatment.
Features:
- Induction Brazing Machine: Suitable for stainless steel/copper/aluminum material brazing.
- Temperature Control: Digital display, temperature range from -20℃ to +50℃.
- Output Frequency: 10-40KHz.
- Input Power: 10KVA.
- Cooling System: Water Pressure:4~6 Bar.
Technical Parameters:
| Parameter | Value |
|---|---|
| Heating Mode | Induction Heating |
| Induction Coil | Copper |
| Input Frequency | 50-60Hz |
| Relative humidity | 20% ~ 90% |
| Output Frequency | 10-40KHz |
| Cooling System | Water Pressure:4~6 Bar |
| Duty Cycle | 100% |
| Temperature Control | Digital Display |
| Temperature | -20℃ ~ +50℃ |
| Weight | 20KG |
| Special Feature | Portable induction heater, soldering, with HHT, temperature control |
Applications:
The Canroon CR2100 Induction Brazing Machine is a sophisticated device designed for metal heat treatment applications. Featuring a weight of 20KG, a water pressure range of 4~6 Bar, a 3-phase/400V(±20%) voltage, and a 100% duty cycle, this induction brazing machine is capable of working with stainless steel, copper, and aluminum. The induction coil size can also be customized according to the user's needs. With its versatile features and customizable functions, the Canroon CR2100 Induction Brazing Machine is a great choice for professional metalworking projects.
Customization:
Induction Brazing Machine
Brand Name: Canroon
Model Number: CR2100
Place of Origin: Shenzhen, China
Input Power: 10KVA
Cooling System: Water Pressure:4~6 Bar
Temperature Control: Digital Display
Output Frequency: 10-40KHz
Output Power: 8kW
Our Induction Brazing Machine is specialized in soldering with HHT, stainless steel/copper/aluminum/titanium.
Packing and Shipping:
Induction Brazing Machine must be packaged and shipped in accordance with the highest standards to ensure its safe arrival. The packaging should be done in the following manner:
- The machine must be securely wrapped with bubble wrap and placed in a cardboard box.
- The box must be filled with foam to protect the machine from any impact.
- The box must be clearly labeled with the machine’s name and address of the recipient.
- The box must be securely sealed with tape to prevent moisture or dirt from entering.
- The box must be shipped via a reliable carrier service.
FAQ:
Q1: What is the Brand Name?
A1: The Brand Name is Canroon.
Q2: What is the Model Number?
A2: The Model Number is CR2100.
Q3: Where is the Place of Origin?
A3: The Place of Origin is Shenzhen, China.
Q4: What materials can the Induction Brazing Machine bond?
A4: The Induction Brazing Machine can bond copper, aluminum, stainless steel and other metal materials.
Q5: What are the advantages of the Induction Brazing Machine?
A5: The Induction Brazing Machine has the advantages of high precision, fast speed, high efficiency, no pollution and easy operation.
