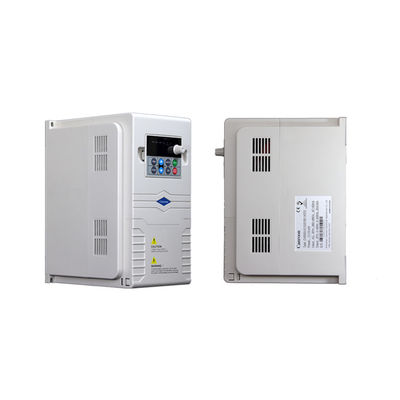

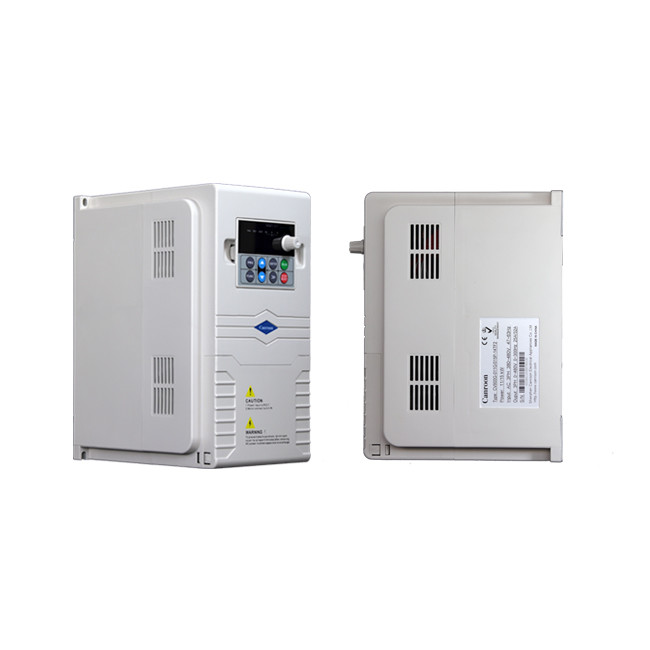

High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE ISO9001
Model Number CV900A
Minimum Order Quantity 1
Price negotiated price
Packaging Details wooden box , carton box
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 3000 Piece/Pieces per Week
Product Details
Ambient Temperature -10℃-40℃ Rated Voltage And Frequency Three-phase AC 323V~ 528V, 50/60Hz+5%
Input Frequency Range 50-60Hz Maximum Speed Converted To 2000Hz According To The Output Frequency
Output Frequency Range 0-400Hz Humidity ≤90%RH
Overload Capacity 150% Rated Current For 60 Seconds Input Voltage Range 220V-480V
High Light

High Torque Frequency Converter Inverter

,

PMSM Drive Frequency Converter Inverter

,

PMSM Drive Frequency Phase Converter

Product Description

Variable Frequency Converter Low-Speed High-Torque Output 2-15kHz Relay Output Fault Output PMSM Driver

Product Description:

CV900A PMSM Drive is an efficient and reliable motor drive solution for various automation production equipment drivesuch, low-speed high-torque output, aluminum extrusion, hydraulic presses, shoe machines, etc. It has wide input voltage range from 220V to 480V, rated voltage and frequency of Three-phase AC 323V~ 528V, 50/60Hz±5%, excellent protection level of IP20, frequency control accuracy of vector control, and ambient temperature range of -10℃-40℃. Variable Frequency Converter is suitable for various industrial applications such as fans, pumps, and conveyors, etc. It has the features of stable performance, high efficiency, strong anti-interference, and easy installation.



The CV900A series is a high-performance universal current vector PMSM driver designed specifically for driving permanent magnet synchronous motors. The producthas low-speed high-torque output, excellent dynamic characteristics, and superoverload capacity. lt is mainly used to control and regulate the speed and torque ofthree-phase AC synchronous motors, and can easily achieve high-performance vectorcontrol of permanent magnet synchronous motors. lt is applied in servo drives forhydraulic control direction.



Features:

  • Product Name: CV9APMSM Drive
  • Input Frequency Range: 50-60Hz
  • Overload Capacity: 150% Rated Current For 60 Seconds
  • Frequency Control Accuracy: Vector Control
  • Output Frequency Range: 0-400Hz
  • Maximum Speed: Converted To 2000Hz According To The Output Frequency
  • High Control Precision of Speed
  • Compatible with the Bus Function Mainstream Controllers



High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter 0



Technical Parameters:

Parameter Value
Operating Status Signal Relay Output Signal: Fault Output, Conditional Function Output
Frequency Control Accuracy Vector Control
Control Mode V/f Controlasynchronous Motor Current/flux/sensorless Vector Control
Input Voltage Range 220V-480V
Power Range 0.75-320KW
Maximum Speed Converted To 2000Hz According To The Output Frequency
Output Frequency Range 0-400Hz
Overload Capacity 150% Rated Current For 60 Seconds
Rated Voltage and Frequency Three-phase AC 323V~ 528V, 50/60Hz+5%
Protection Level IP20
High Control Precision of Speed Variable Frequency Converter
Aluminum Extrusion Hydraulic Presses, Shoe Machines



High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter 1

Applications:

The CV900A series driver has been optimized for hydraulic control actions, andcombined with the controllers of injection molding machines, die-casting machines, andpresses, it achieves high-response pressure and flow control. Under high precisionpressure control conditions, the pressure response and fow response are furtheroptimized.



Canroon's CV900A PMSM Drive is a reliable and cost-effective device offering excellent performance in a wide variety of industrial applications. It can be used to control the speed of aluminum extrusion, hydraulic presses, shoe machines, and other machines requiring high-response pressure and flow control. This high-precision device offers superior control accuracy with its V/f Controlasynchronous Motor Current/flux/sensorless Vector Control, allowing for precise frequency control accuracy. The rated voltage and frequency range is from three-phase AC 323V to 528V, 50/60Hz+5%, and the overload capacity is 150% rated current for 60 seconds. Furthermore, it has a carrier frequency range of 2-15kHz, allowing for a wide variety of applications. The design is compact and lightweight, making it easy to install and maintain. It is also certified with CE ISO9001, providing assurance of safety and stability.



High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter 2



Support and Services:

We provide technical support and service for our Variable Frequency Converter products. Our technical support team is available to answer any questions you may have and help you identify the best solution for your needs. We also offer installation, maintenance, and repair services for our Variable Frequency Converter products. Our team of qualified technicians can help you troubleshoot and resolve any issues you may have with your Variable Frequency Converter.



High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter 3



FAQ:

Q: What is the brand name of the Variable Frequency Converter?
A: The brand name of the Variable Frequency Converter is Canroon.
Q: What is the Model Number of the Variable Frequency Converter?
A: The Model Number of the Variable Frequency Converter is CV900A.
Q: Where is the place of origin of the Variable Frequency Converter?
A: The place of origin of the Variable Frequency Converter is Shenzhen, China.
Q: What kind of certification does the Variable Frequency Converter have?
A: The Variable Frequency Converter has CE and ISO9001 certifications.
Q: What is the minimum order quantity of the Variable Frequency Converter?
A: The minimum order quantity of the Variable Frequency Converter is 1.

High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter 4

High Torque Frequency Converter Inverter PMSM Drive Frequency Phase Converter 5
