IGBT Portable Induction Brazing Machine 800KVA For Copper Tube

IGBT portable induction heating heater for copper tube/gold/silver/steel brazing

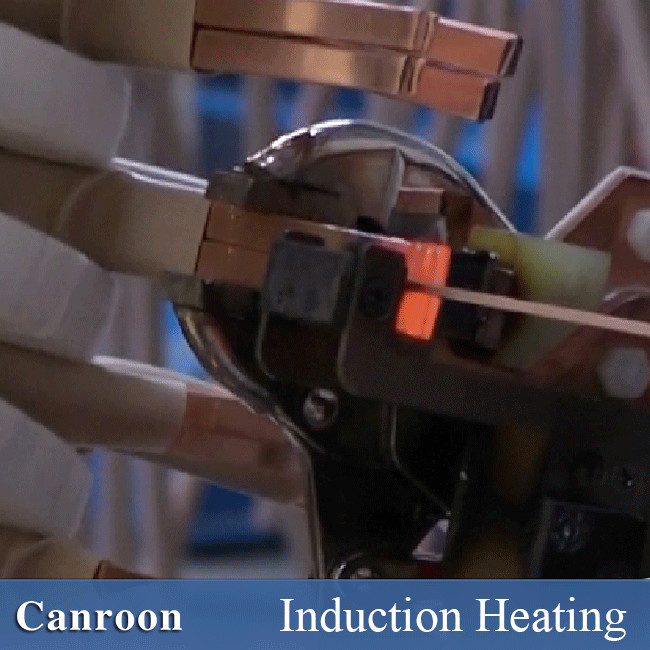

Typical brazing case:

short circuit ring, copper wire / tube, rotor bar, heat exchanger, etc

Advantages of induction heating heater for copper tube/gold/silver/steel brazing

1. various model for choice

Split type is provided to work with your current chiller.

All-in-one type is designed with built-in chiller, no need for external cooler, less space;

2. high temp | fast heating

Able to reach above 1000℃ within seconds, save our precious time, improve your work efficiency;

3. easy operation

CR2100 can be easily start/stop manually, and scan on workpieces surface to do local heatng.

It can also be integrated into robot arm to serve automatic line.

4. HHT

Compact design, easy to handle for manual work, easy to be integrated into robot arm for automatic work;

5. inductor (detachable | replaceable)

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.

6. water cooling

For long service life;

7. accurate controllable heating

Local heating, controllable procedure (temperature-time, or power-time);

8. self-diagnosis

35 fault code and 11 alarm code display for faults like over current, over voltage, phase loss, short circuit, earth leakage, high temperature of heatin sink/capacitor, cooling fault, etc.

9. fault protection & logging

Fault code will display and be recorded for reference, and system will recpond with protection action like shutdown once fault occures such as open-loop or short out.

Easy for maintenance.

Model Type:

Model Pictures:

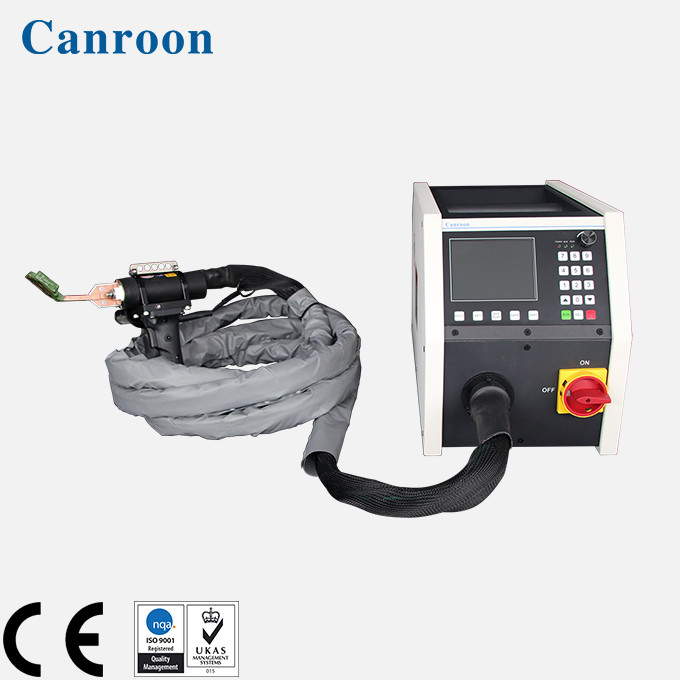

HHT (hand held transformer) & Inductors

HHT is designed with coaxial transformer, for your easy manual manipulation, and also can be integrated into robot arm for automatic production.

Induction coils / inductors (detachable) are easy for assemble and dismantle from HHT, so you can connect with different coil for different workpieces.

Two control keys:

1. trigger: pull to start heating, loose to stop heating;

2. button: lock the trigger (pull the trigger and press the button,heating will be continuous.





FAQ

1. Are you a trading company or manufacturer?

We are a leading manufacturer of induction heating machine & VFD, located in Shenzhen, China.

2. What information should I provide when making enquiry? How to confirm the suitable equipment and solution for me?

Please provide detailed information including:

(1) application ___;

(2) workpiece: material___, dimension___, heating area___,pictures&drawing___;

(3) heating requirement: max. heating temp___, heating rate___, etc;

(4) local electricity supply for equipment running: ___V, ___Hz.

3. What's the leading time for one set, and larger quantities?

Normally we have stock of the induction heating power source, but customized inductor/coils require 15 working days.

4. What's your quality guarantee period?

12 months warranty.

5. Can I have a sample tested, and visit your factory?

We welcome you to send us sample for heating test, and will offer you test video and data.

Your visit will be highly welcomed. We will guide you through our production line, PCB & machine test procedures, burn-in room, and make heating demo for you.

6. What is your company's expect for business cooperation?

Canroon is looking forward to have a solid long-term business cooperation with you, and will offer you our continuously support in various ways.

7. What many series product do you offer in induction heating?

Canroon developed different induction heating equipment for different applications and industies.
