Vector VFD Variable Frequency Drive Dynamic Torque Response CE Certificate

High Performance Vector Frequency Drive Speed-Sensor-Less Vector Control Dynamic Torque Response

Product Description:

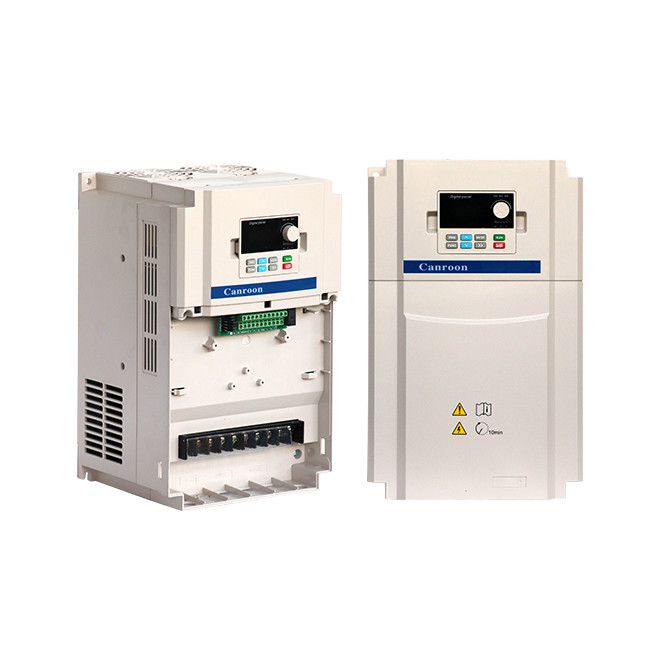

The CV900N High Performance Vector Frequency Inverter is a VFD Variable Frequency Drive that is widely used in lifting equipment, natural gas, pulp and paper, ceramics, plastic machinery and other industry equipment. It provides superior performance through its high performance vector control and improved precision control and dynamic response.

The VFD Variable Frequency Drive features V/F Control, Speed-sensor-less Vector Control (SVC), a built-in PID Controller (frequency can be preset) and standard RS485 Communication Function. The speed torque response is ≤20ms (Speed-sensor-less Vector Control). It has a G Type overload capacity of 150% rated current 60s, 180% rated current 3s and a P Type overload capacity of 120% rated current 60s, 150% rated current 3s. The cooling method is air cooling with fan control.

Features:

• Product Name: VFD Variable Frequency Drive
• Speed Torque response: ≤20ms ( Speed-sensor-less Vector Control)
• Analog Input: Maximum Frequency X0.025%
• Frequency: Vector Control: 0~500Hz V/F Control: 0-5000Hz
• Output Voltage: 14T,0~480V ; 12S,0~260V
• PID Control RS485 Communication: Built-in PID Controller (frequency Can Be Preset) Standard RS485 Communication Function
• High Speed Stability Accuracy: Used in lifting equipment, natural gas, pulp and paper, ceramics, plastic machinery and other industry equipment, can easily solve technical and performance problem.

Technical Parameters:

Applications:

Canroon CV900N Variable Frequency Drive (VFD) is an advanced, high quality VFD, designed for a variety of applications and scenarios. This VFD has a high power density design, and provides high torque response, overload protection and cooling fan control. It is certified with CE and ISO9001 certification, and comes with a minimum order quantity of 1. The price is negotiable, and the packaging details are a carton box. The delivery time is 5-7 days, and payment terms include L/C, T/T, Western Union, and Paypal. The VFD has a supply ability of 3,000 pieces per week, and has torque response of ≤+0.5% Rated Synchronous Speed. It also has air cooling fan control, and overload capacity of G Type. 150% Rated Current 60s, 180% Rated Current 3s; P Type. 120% Rated Current 60s, 150% Rated Current 3s. Additionally, it has V/F Control, Speed-sensor-less Vector Control (SVC) and PID Control RS485 Communication. It also has a built-in PID controller (frequency can be preset) and standard RS485 communication function.

Support and Services:

At ABC Company, we provide technical support and services for VFD Variable Frequency Drive users. Our team of highly experienced engineers and technicians are available to offer assistance and advice to ensure the optimal performance of your system.

We provide a range of services for VFD Variable Frequency Drive users, including:

• Installation Support
• Troubleshooting Assistance
• Product Maintenance & Upgrades
• Remote Monitoring & Diagnostics
• Software & Hardware Upgrades

We work hard to keep our customers up and running, and to ensure that they receive the best possible service. Our experienced technicians are available around the clock to provide assistance and advice whenever it is needed.

For more information on our VFD Variable Frequency Drive technical support and services, please contact us today.

FAQ:

Q1: What is Canroon CV900N?

A: Canroon CV900N is a VFD Variable Frequency Drive manufactured by Canroon.

Q2: Where is Canroon CV900N made?

A: Canroon CV900N is made in Shenzhen, China.

Q3: Does Canroon CV900N have any certifications?

A: Yes, Canroon CV900N has both CE and ISO9001 certifications.

Q4: What is the minimum order quantity of Canroon CV900N?

A: The minimum order quantity for Canroon CV900N is 1.

Q5: What is the price of Canroon CV900N?

A: The price of Canroon CV900N is negotiable. The packaging details are carton box and the delivery time is 5-7 days. The payment terms are L/C, T/T, Western Union,Paypal and the supply ability is 3000 Pieces per Week.
