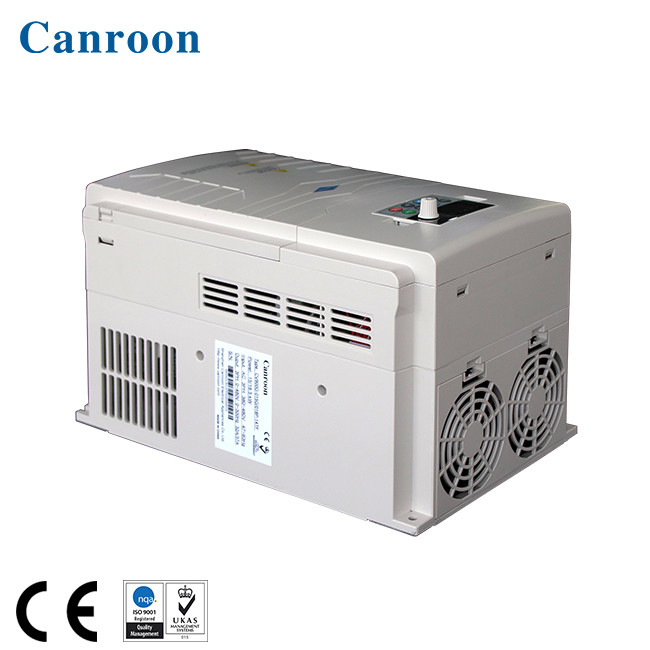

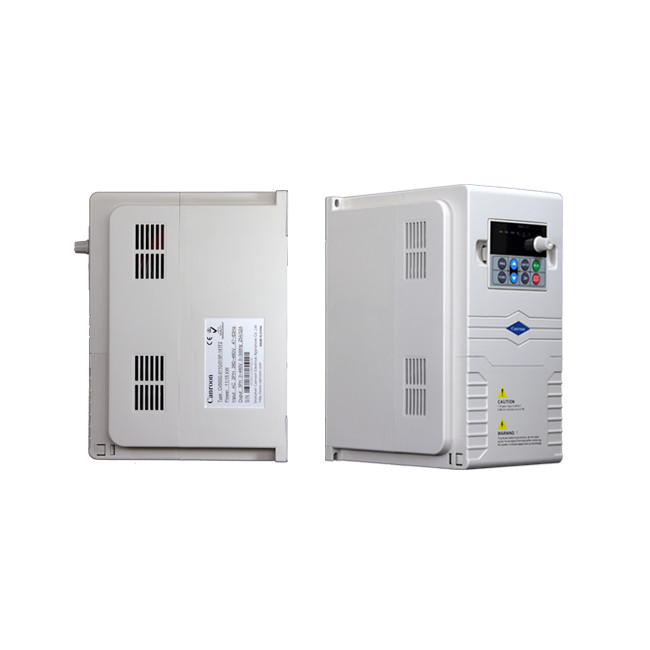

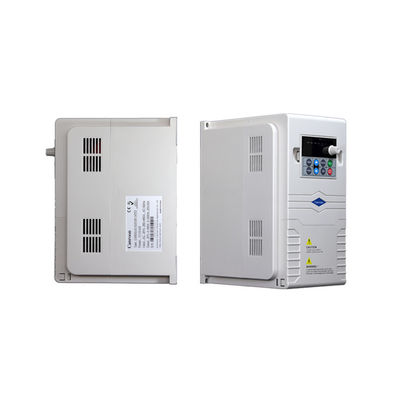

VFD Variable Frequency Converter Air Cooling 30kw 380v 3phase
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Canroon |
| Certification | CE ISO9001:2015 |
| Model Number | CV900G Series |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | WoVFD Frequency Converter Air Cooling LCD Display Plastics Case 30kw 380v 3phaseoden case, neutral carton |
| Delivery Time | Most items are with stock for sample order within 2 days for shipping, bulk order in 20-45 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 2000 Piece/Pieces per Week |
Product Details
| Input | 3-phrase, 320V~460V, 50/60Hz | Output | 3ph 0-460v, 0-300Hz |
|---|---|---|---|
| Adapted Motor | 0.4-500kW | Frequency | Low Frequency Mode, High Frequency Mode |
| Cooling Method | Air Cooling With Fan Control | Installation Method | Wall-hanging Type, Cabinet Type |
| Output Signal | Digital Input; Analog Input | Material | LCD+Metal Case |
| Overload | 150% For 1 Min, 180% For 5s | Control Mode | V/F Control, Advanced V/F Control, V/F Separated Control, Current Vector Control |
| High Light | 30kw Variable Frequency Converter,VFD Variable Frequency Converter,30kw VFD Frequency Converter |
||
Product Description
VFD Frequency Converter Air Cooling LCD Display plastics Case 30kw 380v 3phase
Inverter power range: 0.4kW to 2.2kW
Input voltage: 1 phase 220V, 230V, 240V fluctuate rate 15% plus-minus
Output voltage: 3 phase 0 to rated input voltage
Frequency inverters are electronic devices that let you control the speed of an AC motor. Background:
If electric motors or AC motors are operated directly from an AC voltage supply system, they can only
avail of a fixed speed based on the number of poles and the supply frequency of the power supply
system on location.
Applications of VFD Frequency Converter Air Cooling LCD Display plastics Case 30kw 380v 3phase:
Printing machinery,drawing machine, textile,wire and cable, metallurgy, machine tools, packaging machinery, tobacco,
paper making, stone machinery, food, chemical, transmission, wood machinery, ceramic industry, building materials,
and much more industries.
Product Feature of VFD Frequency Converter Air Cooling LCD Display plastics Case 30kw 380v 3phase
4 Control Mode:
1,V/F Control,
2,Advanced V/F Control,
3,V/F Separation Control,
4, Electric Current Vector Control.
High Running Freq.Max. 3000Hz.
CV900G series frequency inverter included advanced technology of flux vector control. High torque output
of full frequency,quick response, perfect load adaptability, high control precision of speed and good reliability,
all of which ensure it to meet high requirement of various field application.
Technical Index and Specification of VFD Frequency Converter Air Cooling LCD Display plastics Case 30kw 380v 3phase
| Input | Rated Voltage, Frequency |
3-phase(4T#sereis)380V;50/60HZ 1-phase(2S#series)220V;50/60HZ |
| Allowed Voltage Range |
3-phase(4T#series)320V~460V 1-phase(2S#series)160V~260V |
|
| Output | Voltage |
4T#series; 0~460V 2S#series; 0~260V |
| Frequency | Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ | |
| Overload Capacity |
G type: 110% for long-term, 150% for 1 min, 180% for 5s P type: 105% for long-term, 120% for 1 min, 150% for 1s |
|
| Control Mode | V/F control, advanced V/F control, V/F separation control, electric current vector control | |
Frequency Inverter
- LCD panel, nixie tube panel of single row or double row
- Pulse train I / O function
- Run time and electricity consumption recording
- Speed and torque control
- VF separation control
- Swing frequency control
- Length control
- PID control
- Communicating function
AC Frequency Converter Basic Running Wiring Diagram
Packaging:
1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements
Certifications:
Our Services
1. keep the quality first and make more products benefit to our customers' need
2.about our Online/Sale service
super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.
3.After-sale service
Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and
clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to
us, and we will try our best to support you.
FAQ:
1. Are you a trading company or manufacturer?
We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.
2. Is your company a trading firm? or Factory?
We are a factory with 12 years experience in China. Welcome to our factory if you like.
3. Q: How is your products quality?
As a manufacturer, we have our own R&D team. And our machine has been well recognized around our clients in China, as well as by those from abroad.
4. I am not so familiar with your machine now. I am not sure i can use it well if i buy it from you?
Dont worry about this any more. With the machine,we will send you a brochure with detail information with our machine operation. If you need, Video is also available.
