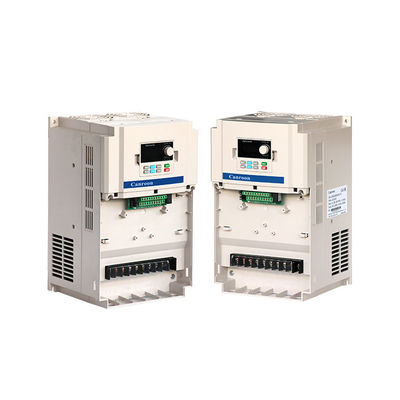

0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter
  • 0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter
  • 0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter
  • 0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter
  • 0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter
  • 0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter
Place of Origin Shenzhen CHINA
Brand Name Canroon
Certification CE ISO9001
Model Number CV900G-004/007P-14TF
Minimum Order Quantity 1 piece
Price 117-180usd/piece
Packaging Details woodon case, carton or customized
Delivery Time 3-7days
Payment Terms T/T, Western Union, L/C
Supply Ability 10000 pieces a month
Product Details
Type AC-DC-AC Output Type Multiple
Output Frequency 50Hz/60Hz Application Pump, Fan, Ac Motor, Compressor
Pump, Fan, Ac Motor, Compressor 5hp Control Mode Vector Control, V/f Control
Frequency 0-3000hz Warranty 18months
Sample Lead Time 1-3 Days Bulk Order Lead Time 10-25 Days
Rate Power 3.7kw Input Voltage 380V
Product Description

Product Description

CV900G Series frequncy inverter include advanced technology of flux vector control. High torgue output of full frequency, high reponse, perfect load availability, high control percision of speed and good reliability, all of which ensure it to meet high requirment of various filed application.

Product Feature

A variable frequency Drive/Inverter (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage of its power supply. The VFD also has the capacity to control ramp-up and ramp-down of the motor during start or stop, respectively. Even though the inverter controls the frequency and voltage of power supplied to the motor, it is often refered to this as speed control. The result is an adjustment of motor speed.




Benefits

  • Save energy and improve system efficiency
  • Convert power in hybridization applications
  • Match the speed of the drive to the process requirements
  • Match the torque or power of a drive to the process requirements
  • Improve the working environment
  • Lower noise levels, for example from fans and pumps
  • Reduce mechanical stress on machines to extend their lifetime
  • Shave peak consumption to avoid peak-demand prices and reduce the motor size required





Product Feature

0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter 0





Specification

0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter 1

nput Rated Voltage, Frequency

3-phase(4T#sereis)380V;50/60HZ

1-phase(2S#series)220V;50/60HZ
Allowed Voltage Range

3-phase(4T#series)320V~480V

1-phase(2S#series)160V~260V
Output Voltage

4T#series; 0~480V

2S#series; 0~260V
Frequency Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ
Overload Capacity

G type: 110% for long-term, 150% for 1 min, 180% for 5s

P type: 105% for long-term, 120% for 1 min, 150% for 1s
Control Mode V/F control, advanced V/F control, V/F separation control, electric current vector control



Model Input voltage Rated power

Output Current

(A)

 HP KG
CV900G-00AG-12SF

Single Phase

220V

 0.4 2.4 1/2 1.5
CV900G-00BG-12SF 0.75 4.5 1
CV900G-001G-12SF 1.5 7 2
CV900G-002G-12SF 2.2 10 3 2.6
CV900G-003G-12SF 3.0 13 4
CV900G-004G-12SF 3.7 16 5
CV900G-005G-12SF 5.5 20 7
CV900G-007G-12SF 7.5 30 10 3.5
CV900G-0011G-12SF 11 42 15 4
CV900G-00BG-14TF

3 Phase

380V

 0.75 2.5 1 1.5
CV900G-001G-14TF 1.5 3.7 2
CV900G-002G-14TF 2.2 5.5 3
CV900G-003G/004P-14TF 3/3.7 6.8/9 4/5 2.6
CV900G-004G/005P-14TF 3.7/5.5 9/13 5/7
CV900G-005G/007P-14TF 5.5/7.5 13/17 7/10
CV900G-007G/011P-14TF 7.5/11 17/25 10/15 3.5
CV900G-011G/015P14TF 11/15 25/32 15/20 4
CV900G-015G/118P-14TF 15/18.5 32/37 20/24.5 6.8
CV900G-018G/022P-14TF 18.5/22 37/45 24.5/30 7.3
CV900G-022G/030P-14TF 22/30 45/60 30/40
CV900G-030G/037P-14TF 30/37 60/75 40/50 17.3
CV900G-037G/045P-14TF 37/45 75/90 50/60
CV900G-045G/055P-14TF 45/55 90/110 60/73 27.5
CV900G-055G/075P-14TF 55/75 110/150 73/100
CV900G-075G/090P-14TF 75/90 150/176 100/120 62
CV900G-090G/110P-14TF 90/110 176/210 120/147 63
CV900G-100G/132P-14TF 110/132 210/253 147/176
CV900G-132G/160P-14TF 132/160 253/300 176/214
CV900G-160G/185P-14TF 160/185 300/340 214/247 100
CV900G-185G/200P-14TF 185/200 340/380 247/267
CV900G-200G/220P-14TF 200/220 380/420 267/294
CV900G-220G-/250P-14TF 220/250 420/470 294/334 200
CV900G-250G/280P-14TF 250/280 470/520 334/374
CV900G-280G/315P-14TF 280/315 520/600 374/420
CV900G-315G/350P-14TF 315/350 600/640 420/467 203
CV900G-350G/375P-14TF 350/375 640/700 467/500 235
CV900G-375G/400P-14TF 375/400 700/750 500/534 257
CV900G-400G/450P-14TF 400/450 750/820 534/600
CV900G-450G/500P-14TF 450/500 820/930 600/667







Applications

Canroon CV900G vfd High performance 1hp, 2hp, 3hp single phase to 3 phase 220v 240v AC variable power drive frequency Inverter



Installation and wiring
0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter 3
0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter 4

Certificate

0-3000hz 3.7kw Variable Electric Frequency Drive 5hp 380V Vfd Motor Inverter 5





Payment Terms

  • Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); Trade assurance from Alibaba with 20000 dollars
  • MOQ: 1 set;
  • Warranty: 18 months



Shipping ways

  • Fedex/DHL/UPS/TNT for samples, door to door;
  • By air or by sea for batch goods for FCL, airport/port receving;
  • Customers specifying freight forwarders for negotiable shipping methods.
  • Delivery time: 3~7 days for samples, 10~25days for bulk order goods.
