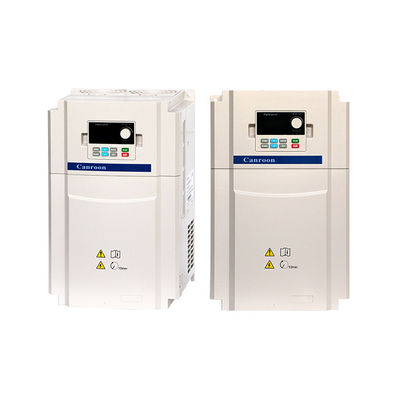

11kW AC Vector Frequency Inverter with 1-Phase Input for Motor Control

CV900G 0.4kW–11kW AC Frequency Inverter, 1-Phase 220V Vector Control VFD

Product Description:

The CV900G Series AC Frequency Inverter supports single-phase 220V–240V input and delivers precise motor control through current vector control and advanced V/F algorithms. With a power range from 0.4kW to 11kW, it is ideal for applications requiring reliable speed regulation and enhanced energy efficiency.

When AC motors are powered directly by standard AC mains, their speed is fixed based on the motor poles and the line frequency. The CV900G inverter overcomes this limitation by converting and modulating frequency and voltage, enabling variable motor speeds and smoother operation.

This series offers a 3-phase output voltage, adjustable from 0V up to the rated input voltage, and supports ±15% voltage fluctuation tolerance on the input side, ensuring stable performance even under unstable power conditions.

Key Features:

• Power Range: 0.4kW to 11kW (Series available up to 500kW)
• Input Voltage: Single-phase 220V / 230V / 240V ±15%
• Output Voltage: 3-phase 0V to rated input voltage
• Control Modes:
• V/F Control
• Advanced V/F Control
• V/F Separation Control
• Electric Current Vector Control
• Stable Output: Delivers precise speed control and torque response
• Compact Design: Suitable for control cabinets and decentralized installations
• Flexible Operation: Compatible with various types of AC motors

Applications:

The CV900G 0.4kW–11kW inverter is widely used across multiple industries for motor speed control in:

• Mining & Metallurgy Equipment
• Printing & Packaging Machinery
• Textile & Cable Production Lines
• Machine Tools & Drawing Machines
• Stone, Wood & Ceramic Machinery
• Tobacco, Food, and Chemical Processing
• Building Materials & Construction Equipment
• Paper-Making and General Industrial Automation

High Running Freq.Max. 3000Hz.

Product model of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V

CV900G series frequency inverter included advanced technology of flux vector control. High torque output of full frequency,

quick response, perfect load adaptability, high control precision of speed and good reliability, all of which ensure it to meet

high requirement of various field application.
It can easily drive and control motors, and is suitable for industries such as textiles, paper industry, metallurgy, chemicals,

fans and pumps, plastic machinery, and various automated production equipment.

Operation Wiring Diagram of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V

Inverter wiring part, divided into the main loop and control loop. The user can lift the cover of the output/input terminals,
then can see the main loop terminal and the control loop terminal. Connect the wiring loop correctly as shown in the
figure below.

Optional Accessories of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V

We can provide options such as LCD keyboard,Keyboard base,Keyboard connector,Brake unit,

Input/output filter,Brake resistor,Input and output reactor etc.

Product Applications of CV900G 0.4kW–11kW AC Frequency Inverter

The CV900G series frequency inverter with single-phase 220V–240V input is widely used for precise motor control and energy-efficient operation in various industrial sectors, including:

• Mining and metallurgy equipment
• Printing and packaging machinery
• Tobacco and paper processing
• Textile, wire, and cable production
• Drawing machines and machine tools
• Stone, wood, and ceramic machinery
• Food and chemical processing lines
• Transmission and conveying systems
• Building materials and construction equipment

Its flexible control modes and reliable performance make it ideal for a broad range of automation and motion control applications.

Factory workshop

Exhibition

Certificate

Packaging:

1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements

Our Services

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

super and solid quality,Fast and punctual delivery,Standard export package or as customers’ need.

3.After-sale service

Assistance to your project,Repairing and maintenance if any problem occur in the warranty, Installation and

clerks training,Spare and wearing parts for free or with big discount,Any feedback of machines can be told to

us, and we will try our best to support you.

FAQ:

1. Are you a trading company or manufacturer?

We are manufacturer in Shenzhen, China, specialized in frequency inverter and portable water cooling

induction heater/induction heating machine for many years.

2. What's the delivery time for sample and bulk order?

Normally for machines in stock, will deliver within 5 days, if not, 7-30 days according to your order.

3. What's your quality guarantee period?

12 months warranty

4. Can I get a lower price if I order large quantities?

Of course. Cheaper price with larger quantity

5. can you customize the machine for us?

Yes, of course, just tell me your detailed requirement, so I can suggest you most suitable model.
