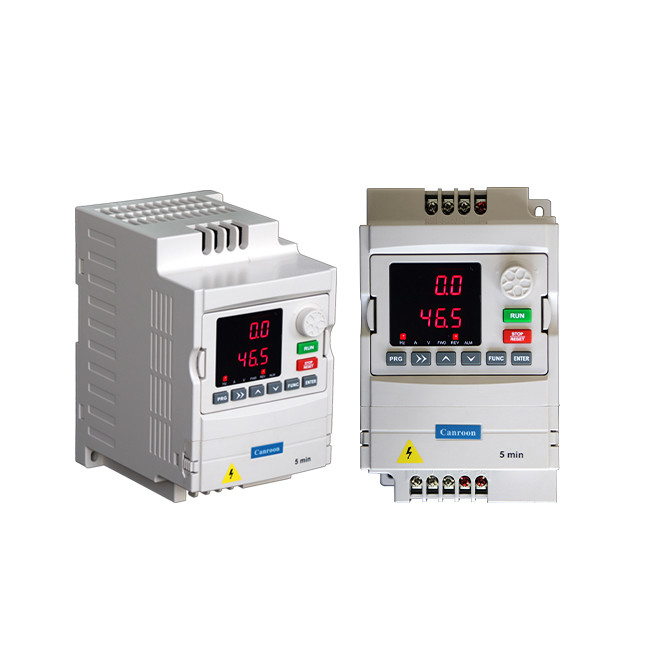

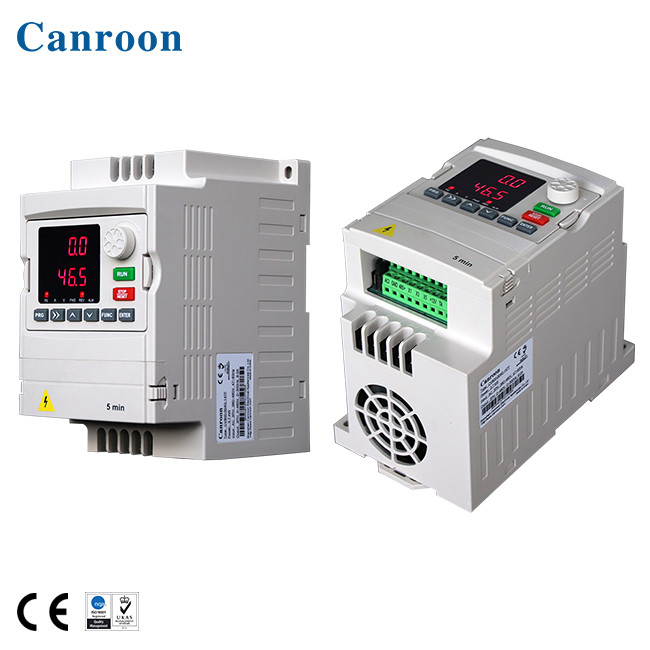

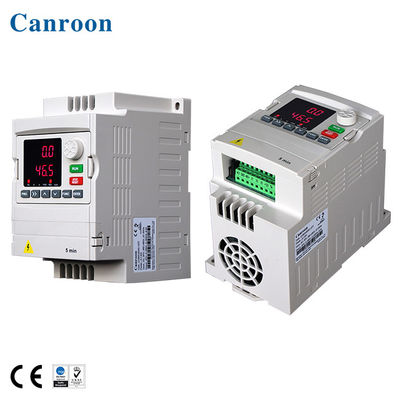

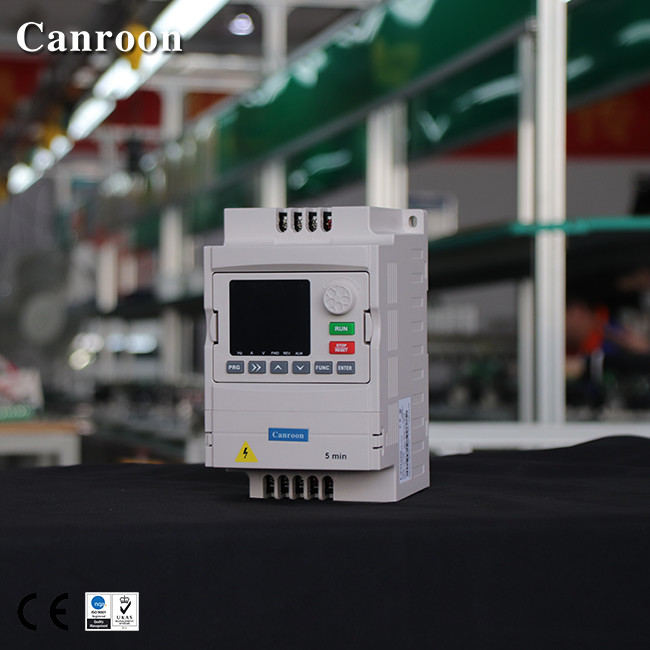

1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver
  • 1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver
  • 1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver
  • 1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver
Place of Origin Guangdong, China
Brand Name Canroon
Certification CE ISO9001
Model Number CV800-004G-14TF
Minimum Order Quantity 1
Price Negotiable price
Packaging Details carton box
Delivery Time 3-5 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 2000 Piece/Pieces per Week
Product Details
Control Mod V/F Control, V/F Control,Advanced VF Control Rated Power 3.7KW
Nominal Voltage 380V Output Power 0.4-11kw
Frequency 0~600HZ Certificate CE ISO9001
Application AC Asynchronous Motor Overload Capacity 150% Rated Current / 60s
Analog Input Within 0.2% Of Maximum Output Frequency Digital Setting Within 0.01% Of Set Output Frequency
Highlight

3hp VFD Frequency Inverter

,

3hp Variable Frequency Driver

,

600HZ Variable Frequency Driver
Product Description

VFD Frequency Inverter 1hp 2hp 3hp 220V 380V 440V Low-cost variable frequency driver

CV800 Series Multi-Function Vector Control Inverter is powerful functions and excellent in performance,

suitable for medium and small power applications, such as constant pressure water supply, woodworking

machinery,textile equipment, food filling, logistics equipment, automated production lines, ceramic equipment,

electronic equipment, packaging machinery, etc.



A frequency inverter is an electronic device which enables the conversion of an electrical variable ‘current’.



About VFD Frequency Inverter of CV800

A vector-controlled frequency inverter does not control an AC motor using a voltage/frequency ratio, but by

varying the motor input frequency and voltage. An advantage of this method is optimum torque control.

Vector-controlled frequency inverters offer other advantages too.



Product model of Canroon's CV800 Series VFD Frequency Inverter



Voltage Classes Model No. Rated Power (KW) Rated Output Current (A)
380V 3-phase CV800-00AG-14TF 0.4 1.2
CV800-00BG-14TF 0.75 2.5
CV800-001G-14TF 1.5 3.7
CV800-002G-14TF 2.2 5
CV800-003G-14TF 3 6.8
CV800-004G-14TF 3.7 9
CV800-005G-14TF 5.5 13
CV800-007G-14TF 7.5 17
CV800-011G-14TF 11 25



Product Features of Canroon's CV800 Series VFD Frequency Inverter

1,Compact and powerful
2,High starting torque, adapt to various loads

3,Supports programmable operation control, making complex applications easier
4,Stronger overload capacity, shorter acceleration time
5,Built-in PID function for full-closed-loop control
6,Comprehensive protection function, more reliable operation



Product Description of Canroon's CV800 Series VFD Frequency Inverter

Our frequency inverters are available in different designs and with a large number of optional functions that

cater to many needs and requirements.

Input Rated Voltage, Frequency 3-phase (-4T) 380V;50/60HZ
Allowed Voltage Range 3-phase (-4T)320V~460V
Output Voltage 4T;0~380V
Frequency 0~600HZ
Overload Capacity 10% for long-term, 150% for 1 min, 180% for 5s
Control Mode V/F control, Simple vector control
Control Character Frequency Setting Analog Input 0.1% of maximum output frequency
Resolution Digital Setting 0.1HZ
Frequency Precision Analog Input Within 0.2% of maximum output frequency
Digital Setting Within 0.01% of set output frequency
V/F Control V/F Curve
(voltage frequency
character)		 Reference frequency setting 5~600 Hz, multipoint V/F curve setting, or fixed curve of constant torque, low decreasing
torque 1, low decreasing torque 2, square torque
Torque Manual setting: 0.0~30% of rated output
Compensation
Automatic
Current-limiting
and
Voltage-limiting		 Automatic lifting: automatically determine the lifting torque based
on the output current combined with the motor parameters
Senseless Vector
Control		 Voltage Frequency Adjust pressure/frequency ratio according to motor parameter and
unique algorithm
Character
Torque Character Starting torque
100% rated torque at 5.0 Hz (V/F Control)
150% rated torque at 1.5 Hz (simple vector control)
Current and Current closed-loop control, free from current impact, perfect
Voltage Restrain restrain function of overcurrent and overvoltage
Undervoltage
Restrain during
Running		 Specially for users with a low or unsteady voltage power grid: even lower than the allowable voltage range, the system can maintain the longest possible operating time based on its unique algorithm and residual energy allocation strategy
Typical function Multi-velocity and
Traverse Operation		 7-segment programmable multi-velocity control, multiple operating modes are optional.
PID Control Built-in PID controller (able to preset frequency).
RS485 Standard configuration RS485
Communication communication function, multiple communication protocol for choice, synchronizing control function.
Frequency Setting Analog Input Direct voltage 0~10V, direct current 0~20mA
(optional up limit and lower limit)
Digital Output Operation panel setting, RS485 port setting, UP/DW terminal control, or combined with analog input
Output Signal Analog Input 1 channel OC output and one channel relay output
(TA, TB,TC), up to 14 choices
Digital Output 1 channel analog signal output, output ranging within 0~20mA or 0~10V with flexibly setting, achievable output of physical quantities like set frequency, output frequency
Automatic
Steady-voltage Operation		 Dynamic steady state, static steady state, and unsteady voltage for choices to obtain the steadiest operation
Acceleration and
Deceleration Time Setting		 0.1S~999.9min continuous setting
Brake Dynamic
Braking		 Dynamic braking initial voltage, backlash voltage and dynamic braking continuous
adjustable
DC
Braking		 Halt DC braking initial frequency:0.00~[F0.05]upper limit frequency
Braking time:0.0~30.0s;Braking current:0.0%~50.0%of rated current
Low Noise Running Carrier frequency 1.0kHz~16.0kHz continuous adjustable, minimize motor noise
Counter A built-in counter, facilitate system integration
Operation Function Upper limit and lower limit frequency setting, frequency hopping operation, reversal running restraint, slip frequency compensation, RS485 communication, frequency
control of progressive increase and decrease, failure recovery automatically, etc.
Display Operation Panel
Display		 Running
State		 Output frequency, output current, output voltage, motor speed, set frequency, module
temperature, PID setting, feedback, analog input and output
Alarm The latest 1 faults record; running parameters record when the latest fault tripping happens including output frequency, set frequency, output current, output voltage, DC voltage and module temperature etc 6 running parameters record.
Protective Function Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc.
Environment Ambient
Temperature
Ambient Humidity 5%~95%RH,without condensing drops
Surroundings Indoors (without direct sunlight, corrosive or flammable gas, oil fog and dust)
Altitude Running in derated capacity above 1000m, derate 10% for every 1000m rise.
Structure Protection Level IP20
Cooling Method Air cooling with fan control
Installation Method Wall-hanging type,Cabinet type


Applications of  Canroon's CV800 Series VFD Frequency Inverter

Drawing machine, textile, packaging machinery, tobacco, paper making, stone machinery, mining machinery,



printing machinery, food, chemical, transmission, wire and cable, metallurgy, machine tools, wood machinery,

ceramic industry, building materials,and much more industries.



Factory workshop of Canroon's CV800 Series VFD Frequency Inverter

1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver 0

1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver 1



About Canroon

Canroon is a remarkable energy saving solutions provider, specialized in frequecy inverter for more than

12 years, whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy,

chemical engineering, petroleum pipeline constrution, newmaterials, new energy and other fields.

Canroon has a professional R&D team, committed to convert its wisdom into leading products and services

to meet the needs of different customers, continuing to create values for customers

1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver 2



Exhibition of Canroon's CV800 Series VFD Frequency Inverter

1hp 2hp 3hp VFD Frequency Inverter 600HZ Variable Frequency Driver 3



FAQ

1. Are you a trading company or manufacturer?
We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.



2. What's the delivery time for sample and bulk order?

Normally we have stock of the mini and medium items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.



3. What's your quality guarantee period?

12 months warranty



4. I am not so familiar with your machine now. I am not sure i can use it well if i buy it from you?
Dont worry about this any more. With the machine,we will send you a brochure with detail information with

our machine operation. If you need, Video is also available.



Payment Terms

1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery);

Trade assurance from Alibaba with 20000 dollars

2. MOQ: 1 set;

3. Warranty: 18 months



Shipping ways

1. Fedex/DHL/UPS/TNT for samples, door to door;

2. By air or by sea for batch goods for FCL, airport/port receving;

3. Customers specifying freight forwarders for negotiable shipping nethods.

4. Delivery time: 3~7 days for samples, 10~25days for bulk order goods.



Packaging:

1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements
