Output Voltage | 14T,0~480V ; 12S,0~260V | Operation Temperature | -10℃~+40℃ |
---|---|---|---|
Humidity | 5%~95%RH,without Condensing Drops | Input Rated Voltage | 3-phase AC 380V ; 1-phase AC 220V |
Control Mode | V/F Control, Speed-sensor-less Vector Control(SVC) | Counter | A Built-in Counter, Facilitate System Integration |
Allowed Voltage Range | 3-phase (4T) : 320V-460V 1-phase (2S) : 190V~250V | Analog Input | Maximum Frequency X0.025% |
Highlight | 220V Single Phase Variable Frequency Drive,Single Phase Variable Frequency Drive,63Hz Variable Frequency Drive |

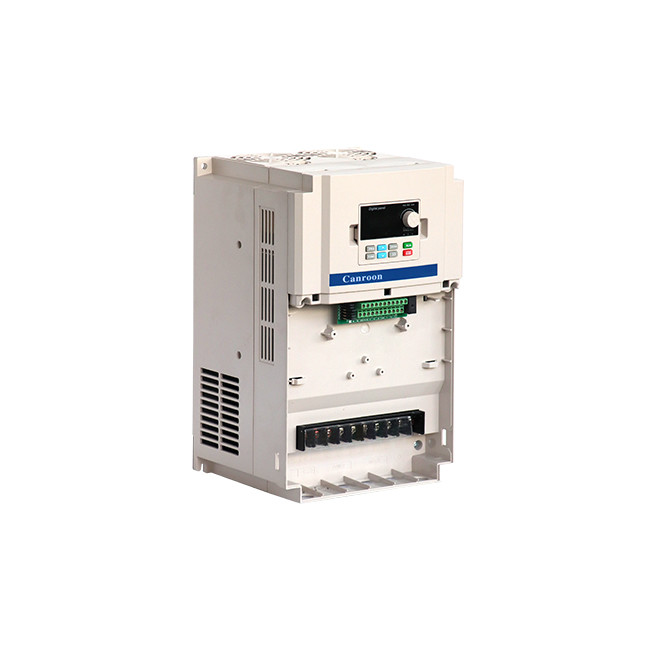

VFD Frequency Inverter With Low Noise Running And Input Frequency 47/63Hz High Performance
Product Description:
VFD Frequency Inverter is a high performance, high quality product designed for high power density. It provides a wide range of power ranging from 0.4KW to 500KW and a wide voltage range of 3-phase (4T): 320V-460V and 1-phase (2S): 190V-250V. It offers excellent overload capacity with G type rated current of 150% 60s, 180% 3s and P type rated current of 120% 60s, 150% 3s. Moreover, it has a wide output frequency range of Vector Control 0-500HZ and V/F Control 0-5000Hz, and a protection level of IP20. VFD Frequency Inverter is especially designed to meet the requirements of various industrial applications.
Features:
- Product Name: VFD Frequency Inverter
- Display: LED
- Input Frequency: 47/63Hz
- Output Voltage: 14T,0~480V; 12S,0~260V
- Control Mode: V/F Control, Speed-sensor-less Vector Control(SVC)
- Operation Temperature: -10℃~+40℃
- Highlights:
- High Speed Stability and Accuracy
- High Performance
- High Quality
- High Power Density Design
Technical Parameters:
Features | Specification |
Low Noise Running | Carrier Frequency 2.0kHz-20.0kHz Continuous Adjustable, Minimize Motor Noise |
Allowed Voltage Range | 3-phase (4T) : 320V-460V 1-phase (2S) : 190V~250V |
Acceleration and Deceleration Time Setting | 0.1s-999.9min Continuous Setting |
Control Mode | V/F Control, Speed-sensor-less Vector Control(SVC) |
Counter | A Built-in Counter, Facilitate System Integration |
Power Range | 0.4KW-500KW |
Humidity | 5%~95%RH,without Condensing Drops |
Output Frequency | Vector Control: 0-500HZ V/F Control: 0-5000Hz |
Cooling Method | Air Cooling With Fan Control |
Operation Temperature | -10℃~+40℃ |
Can Easily Solve Technical and Performance Problems Encountered in Machine Tools |
Large Torque at Low Frequency, High Performance, High Quality, High Power Density Design |
Applications:
Canroon's CV900N VFD Frequency Inverter is widely used in the petrochemical industry, lifting equipment, natural gas, and other industrial fields. It is a high performance vector frequency inverter that offers fast dynamic torque response and is designed for use in different kinds of applications. The CV900N is CE and ISO9001 certified and is equipped with a built-in counter to facilitate system integration. The output voltage of the CV900N is 14T,0~480V and 12S,0~260V, while the operation temperature ranges from -10℃~+40℃. The power range of this product is from 0.4KW-500KW and the cooling method is air cooling with fan control. The minimum order quantity is one and the price is negotiable. It is packaged in a carton box and can be delivered within 3-7 days. Payment terms include L/C, T/T, Western Union and PayPal. The supply ability of this product is 3000 pieces per week.
Support and Services:
VFD Frequency Inverter Technical Support and Service
We provide technical support and service for our VFD Frequency Inverter products. Our support team is available by phone, email, and live chat to answer any questions you may have about our products. Our experienced technicians can help you troubleshoot any issues you may have with your VFD Frequency Inverter, and provide you with helpful tips and advice on how to keep your system running smoothly.
We also offer a variety of services to ensure the highest quality of our products. We offer installation, maintenance, and repair services for all our VFD Frequency Inverter systems. We use the latest equipment and techniques to ensure that your system is operating at its peak performance. We also offer a full range of customization services to meet your specific needs.
Our commitment to customer satisfaction is our top priority. We strive to provide the best customer service and technical support possible. If you have any questions or concerns, please do not hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for VFD Frequency Inverter:
- The inverter will be packed in a sturdy cardboard box.
- The box will be sealed and labeled with the product information.
- The package will be shipped with a reliable courier service.
