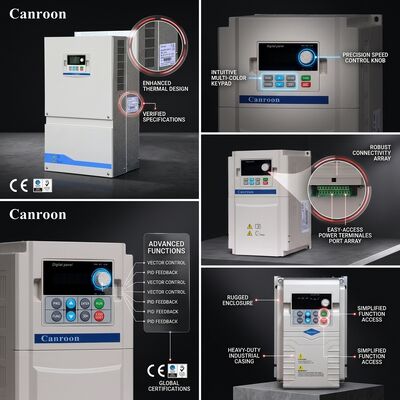

500KW VFD Variable Frequency Drive Energy Saving Controller for Air Compressor 50/60Hz

The Canroon 500KW energy saving VFD variable frequency drive is a microcomputer based motor controller engineered for the most demanding industrial loads. Built on advanced flux vector control technology, this drive delivers high torque output across the full frequency range, rapid dynamic response, precise speed regulation and outstanding load adaptability. Operating from a standard 50/60Hz supply, it produces a controlled output frequency of 0 to 300Hz and a selectable high frequency mode reaching 3000Hz, making it equally suited to air compressor motors, industrial fans, centrifugal pumps, conveyors and process machinery. An integrated LED plus LCD display provides an intuitive operator interface, while digital setting guarantees accuracy within 0.01 percent of the selected output frequency. For factories determined to reduce electricity costs, this air compressor VFD matches motor speed to real time demand, eliminates wasteful throttling and bypass losses, and typically cuts compressor energy consumption by 20 to 40 percent.

• Energy Saving Vector Control: Automatic torque and flux optimization trims current draw at part load, lowering kWh consumption and running cost.
• High Power Output: A 500KW rated platform that supports heavy duty air compressor and industrial motor duty cycles with stable performance.
• Wide Frequency Range: 0 to 300Hz standard output plus a high frequency mode up to 3000Hz for high speed spindles and special motors.
• Reliable Communication: Built in RS485 and CANBUS ports allow seamless integration with PLC, SCADA and building management systems.
• Precise Digital Setting: Output frequency accuracy within 0.01 percent, with analog input accuracy within 0.1 percent of maximum output frequency.
• Integrated PID Control: Closed loop pressure and flow regulation keeps compressed air supply stable without additional external controllers.
• Optimized for Air Compressors: Converts 220V single phase input into 3 phase 380V output and applies advanced V/F separation control for quieter and smoother operation.
• Robust Environmental Tolerance: Rated for altitude up to 1000m, ambient temperature from -10°C to +40°C and protection class IP20 or IP54.

This 500KW VFD is widely deployed where large motors run continuously and energy cost dominates operating budgets. Typical installations include screw and piston air compressors, central compressed air stations, industrial fans and blowers, centrifugal and screw pumps, water treatment plants, conveyors, mixers, extruders and general purpose three phase motor drives. Because the unit accepts a single phase 220V input and delivers a three phase 380V output, it is also a practical upgrade path for workshops that need three phase motor control without a dedicated three phase supply.

In air compressor duty, the drive holds line pressure within a narrow band using closed loop PID regulation, so the motor no longer cycles between full load and unload. The result is lower starting current, reduced mechanical shock on belts and bearings, less noise and vibration, and a measurable drop in maintenance expenditure over the equipment lifetime.

Every 500KW energy saving VFD ships with professional technical guidance covering installation, commissioning, parameter setup and long term maintenance. Our engineering team is available around the clock to answer questions, diagnose alarms and recommend the correct braking, filtering and cable options for your motor. Support includes remote phone assistance, online tutorials and on site field visits when a project demands them, ensuring your production line keeps running.

Each drive is wrapped in a quality protective covering, secured inside shock absorbing material to prevent movement, and packed in a carton box or wooden box suitable for ocean and air freight. A full instruction manual and wiring diagram are included. The carton is taped and clearly labelled Fragile and Handle with Care. We ship through carriers offering tracking and insurance, and standard delivery is 3 to 5 days after order confirmation for stocked ratings. All units are manufactured under a CE and ISO9001 certified quality system and inspected before dispatch, so you receive a reliable, ready to commission variable frequency drive every time.
