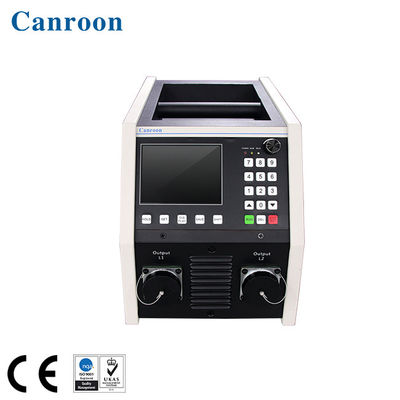

Maximize Uptime: 40KVA Air-Cooled Induction Heater with Fault Self-Diagnosis and Easy Maintenance
Product Details
| Machine Type | Induction Heating Machine | Weight (KG) | 60 |
|---|---|---|---|
| Voltage | 3-phase 380-460V | Core Components | PLC, Bearing, Gear |
| Output Power | 72kW(duty Cycle 100%) | Input Current | 96-144A |
| Heating Temperature | Can Reach 788℃ | Input Frequency | 50-60Hz |
| Output Frequency | 2.5-35KHz | Mobility | Movable With Universal Wheels |
| Applications | PWHT/post Weld Heat Treatment For Steel And Stainles | Cooling Method | Air Cooling |
| Highlight | 40KVA air-cooled induction heater,induction heater with fault diagnosis,easy maintenance induction preheater |
||
Product Description
Canroon induction heating machine price air cooling 40KVA post weld heat treatment
Brand: Canroon(China manufacturer)
Power:40KVA (also supply 5KVA, 10KVA, 80KVA, 120KVA)
Frequency:3-35kHZ
Heating temperature: can be high as 788℃
Voltage: 3phase, 380-460V, 50/60HZ,
Suitable pipe size: 200-800mm diameter, 25-60mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: PWHT/ post weld heat treatment, aslo efficient for welding preheat, joint anti-corrosion coating
Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc
Details of Canroon induction heating machine price air cooling 40KVA post weld heat treatment
Technical parameters of Canroon induction heating machine price air cooling 40kw post weld heat treatment
| Model | Temperature | Input Power | Input | Output | Dimension |
Weight
|
| CR2000-040 | 788℃ | 40KVA |
3-phases 380V-460V 50-60Hz 50-61A |
35KW 3-35KHz Duty Cycle: 100% |
H:762mm W:544mm L:730mm |
115kg |
| CR2000-080 | 788℃ | 80KVA |
3-phases 380V-460V 50-60Hz 100-121A |
72KW 2.3-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
| CR2000-120 | 788℃ | 120KVA |
3-phases 380V-460V 50-60Hz 150-181A |
108KW 2.5-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
Details of Canroon induction heating machine price air cooling 40KVA post weld heat treatment applied in pipe post weld heat treatment/PWHT:
Post weld heat treatment for steel pipes:
Post weld heat treatment for stainless steel pipes:
Different induction heating machine designed for different applications
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT),
plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for
joint anti-corrosion coating).
Accessories of Canroon induction heating machine price air cooling 40KVA post weld heat treatment
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
Simplify Complex PWHT with Intelligent Control
Canroon makes sophisticated post-weld heat treatment remarkably straightforward. Our user-friendly interface with two control modes (Temperature/Power) ensures wide applicability and precise results for any task. The system does the thinking for you: it monitors and records the PWHT curve for printing, and its self-diagnosis feature clearly explains any issues via displayed fault codes. Enjoy high efficiency and uniform heating with the confidence that comes from complete control and simplified operation.
Packaging & Shipping
All of our induction heating machines are carefully packed in wooden case for safe delivery, by sea, by air according to your need.
Our Services
1. keep the quality first and make more products benefit to our customers' need
2.about our Online/Sale service
1)super and solid quality
2)Fast and punctual delivery
3)Standard export package or as customers’ need.
3.After-sale service
1)Assistance to your project
2)Repairing and maintenance if any problem occur in the warranty.
3)Installation and clerks training
4)Spare and wearing parts for free or with big discount
5)Any feedback of machines can be told to us, and we will try our best to support you.
4.Other cooperation service
1)Technology knowledge share
2)Factory building advising
3)Business expansion advising
