Communication Setting | RS485, CAN (customizable Upon Request) | Rated Voltage And Frequency | Three-phase AC 323V ~ 528V |
---|---|---|---|
Ambient Humidity | 5-90%RH Non-condensing | Maximum Speed | Converted To 2000Hz According To The Output Frequency |
Control Mode | Permanent Magnet Synchronous Motor Current Flux/sensorless Vector Control, V/f Control | Carrier Frequency | 2-15kHz |
Overload Capacity | 150% Rated Current For 60 Seconds | Operating Status Signal | Relay Output Signal: Fault Output, Conditional Function Output |
Highlight | IP20 Ac Frequency Inverter,PMSM Drive Ac Frequency Inverter |
PMSM Drive 150% Rated Current Overload Protection IP20 Terminal Block Capacity For 60 Seconds
Product Description:
Introducing Frequency Drive Inverter

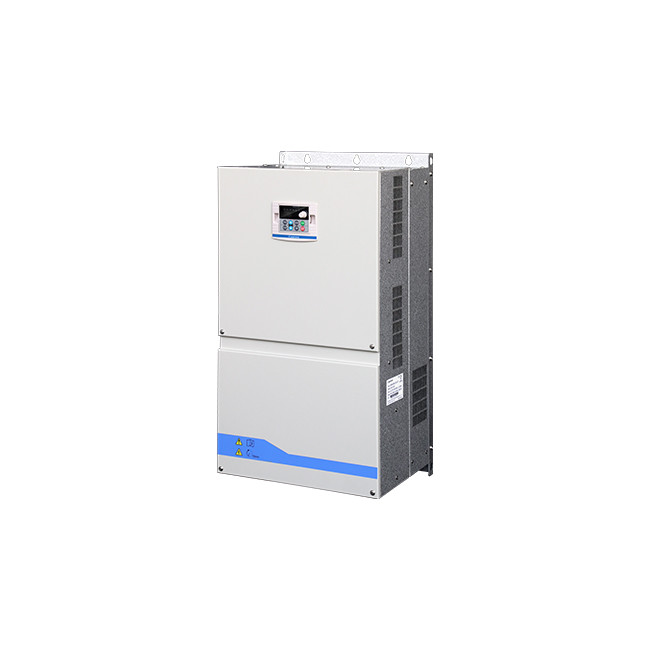

CV900A PMSM Drive is an intelligent drive, which is powerful in function and easy in debugging. It is designed to control the direction of hydraulic servo drive. This inverter offers a terminal block for wiring and can work in a wide range of ambient conditions, such as 5-90%RH non-condensing, -10℃~+40℃. It is also designed to accept input frequency as 50/60Hz+5%, and can be converted to 2000Hz according to the output frequency. With the help of this Frequency Drive Inverter, users could enjoy a stable and reliable control experience in a variety of applications.
Features:
- Product Name: CV900A PMSM Drive
- Protection Level: IP20
- Carrier Frequency: 2-15kHz
- Operating Status Signal: Relay Output Signal
- Fault Output, Conditional Function Output
- Motor Protection: Overload Protection, Supports KTY, PTC Temperature Protection
- Input Frequency: 50/60Hz+5%
- Applied in servo drives for hydraulic control direction
- High-performance vector control
Technical Parameters:
Parameter | Value |
---|---|
Maximum Speed | Converted To 2000Hz According To The Output Frequency |
Overload Capacity | 150% Rated Current For 60 Seconds |
Ambient Temperature | -10℃~+40℃ |
Ambient Humidity | 5-90%RH Non-condensing |
Carrier Frequency | 2-15kHz |
Rated Voltage and Frequency | Three-phase AC 323V ~ 528V |
Motor Protection | Overload Protection, Supports KTY, PTC Temperature Protection |
Protection Level | IP20 |
Operational Control | Input Signal: Oil Start And Stop Instructions |
Wiring Method | Terminal Block |
High-Performance Vector Control | High-Performance Universal Current Vector PMSM Driver, High-Performance Vector Control |
Applications:
The CV900A series driver has been optimized for hydraulic control actions, andcombined with the controllers of injection molding machines, die-casting machines, andpresses, it achieves high-response pressure and flow control. Under high precisionpressure control conditions, the pressure response and flow response are furtheroptimized. The driver is suitable for various automation production equipment drivessuch as aluminum extrusion, hydraulic presses, shoe machines, garbage compactors,die-casting machines, injection molding machines, etc. The driver is equipped with abackgroundmonitoring anddebuggingsoftware,whichmakes remotedebugging/assistance easy, and this product is compatible with the bus function ofmainstream controllers in the market.
The Canroon Frequency Drive Inverter (CV900A PMSM Drive) is designed specifically for driving permanent magnet synchronous motors. It features overload capacity of 150% rated current for 60 seconds, carrier frequency of 2-15kHz, maximum speed of 2000Hz output frequency, wiring method of terminal block and ambient temperature of -10℃~+40℃.
The Canroon Frequency Drive Inverter offers easy and simple debugging and it has been certified with CE and ISO9001.
Support and Services:
Frequency Drive Inverter Technical Support and Service
At
Our technical support team is available by phone, email, and online chat. We also have a comprehensive knowledge base and support library available to help you resolve any issues. We also offer free diagnostic services for all our products.
We provide free firmware and software updates for all our products. We also offer free training courses to help you get the most out of your product.
We are committed to providing you with the best customer experience and strive to exceed your expectations. If you have any questions or concerns about our products, please don't hesitate to contact us.
Packing and Shipping:
The Frequency Drive Inverter is packaged with the following materials:
- Cardboard box
- Foam inserts
- Instruction manual
The Frequency Drive Inverter is shipped with standard ground shipping.
FAQ:
A1: The Brand Name is Canroon.
A2: The Model Number is CV900A.
A3: The Place of Origin is Shenzhen, China.
A4: The Frequency Drive Inverter has CE and ISO9001 certification.
A5: The minimum order quantity is 1.
