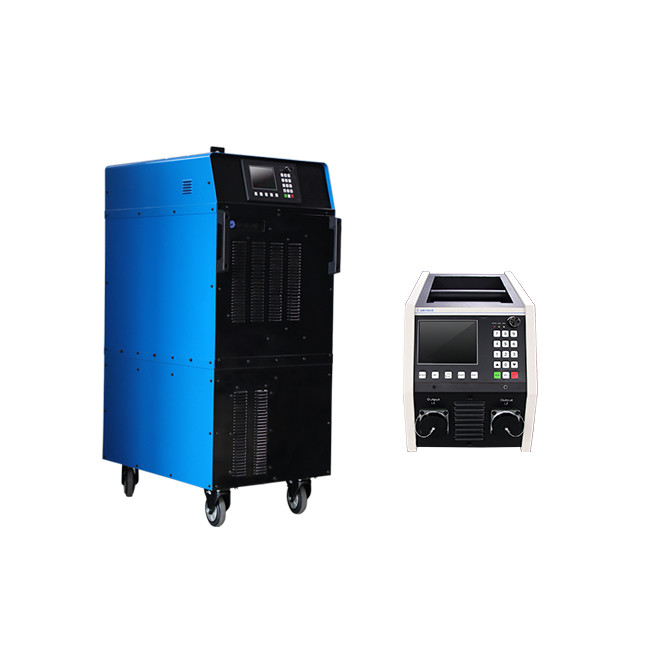

160kW Induction Heating Power Supply IP20 Induction Brazing Equipment
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE ISO9001
Model Number CR2000
Minimum Order Quantity 1
Price negotiated price
Packaging Details wooden box
Delivery Time 7-15 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 300 Piece/Pieces per Week
Product Details
Efficiency >90% Output Power 145kW(duty Cycle 100%)
Temperature Rating Operation -20C~+50C Input Frequency 50-60Hz
Protection Level IP20 Inductance Range 3-500uH
Input 6 Channel TC Input Input Voltage 3-phase 380-460V
Highlight

Induction Heating Power Supply IP20

,

IP20 Induction Brazing Equipment

,

160kW Induction Heating Power Supply

Product Description

160kW Induction Heating Power Supply 2.5-35KHz Duty Cycle 100%

Product Description:

We are proud to introduce our Induction Heating Power Supply. It is designed to meet the needs of many industrial applications, such as metal heat treatment, and can be customized to suit your specific requirements. Our Induction Heating Power Supply has an input voltage of 3-phase 380-460V, and an output frequency of 2.5-35KHz. It has an input power of 160KVA and an output power of 145kW with 100% duty cycle. The input current is 192-288A. This power supply is reliable and efficient, making it the perfect choice for your induction heating needs.



160kW Induction Heating Power Supply IP20 Induction Brazing Equipment 0



Features:

  • Product Name: Induction Heating Power Supply
  • Output Frequency: 2.5-35KHz
  • Input: 6 Channel TC Input
  • Efficiency: >90%
  • Relative Humidity: ≤90%
  • Inductance Range: 3-500uH
  • CE Certificated Large Power
  • Can be customized
  • Welding preheat


Technical Parameters:

Parameter Details
Relative Humidity ≤90%
Efficiency >90%
Input Frequency 50-60Hz
Dimension W: 596mm H: 1252mm D: 805mm
Protection Level IP20
Output Frequency 2.5-35KHz
Output Power 145kW(duty Cycle 100%)
Product Model CR2000-160B-14TF
Input Current 192-288A
Inductance Range 3-500uH
PWHT Yes
Customization Can be customized
Certification CE Certificated
Power Large Power
Temperature High Temperature





Applications:

Canroon's CR2000 series intelligent Digital induction Heating System is CE certificated, with large power up to 160KVA, and is widely used in Post Weld Heat Treatment (PWHT). This series of products is designed to have a dimension of 596mm (W) x 1252mm (H) x 805mm (D), and the input current range is 192-288A, with a input voltage of 3-phase 380-460V and an inductance range of 3-500uH. The minimum order quantity is 1 with a negotiated price, and the product will be delivered within 7-15 days after payment of L/C, T/T, Western Union, or Paypal. The maximum supply ability is 300 pieces per week and the product is packaged in a wooden box.



Customization:

For customers looking for a reliable Induction Heating Power Supply with CE Certificated Large Power, Canroon's CR2000 is your optimal choice. This induction heating power supply has a model of CR2000-160B-14TF, with an output power of 145kW (duty cycle 100%). It is highly efficient (over 90%) and its dimemsion is W: 596mm H: 1252mm D: 805mm. The input frequency is between 50-60Hz.

The minimum order quantity is 1 and the price is negotiated. It is packed in a wooden box and the delivery time is 7-15 days. Payment terms include L/C, T/T, Western Union,Paypal. The Supply Ability is 300 Piece/Pieces per Week.

This product is perfect for preheat in extreme cold outdoors. It is CE and ISO9001 certified, and the joint anti-corrosion coating preheat ensures safety and reliability.



160kW Induction Heating Power Supply IP20 Induction Brazing Equipment 1



Support and Services:

Induction Heating Power Supply Technical Support and Service

We provide comprehensive technical support and service for our Induction Heating Power Supply. Our knowledgeable team of engineers is available to answer any questions you may have about our products.

We offer in-depth technical support to help troubleshoot issues, ensure compatibility and optimize performance for your specific application. Our team is also available to provide technical advice and guidance on the best way to use our products.

We regularly review our product documentation to make sure it is up-to-date and accurate. Our team is also available to provide additional product information and technical data.

We offer a wide range of training programs to help our customers get the most out of their induction heating power supplies. Our training programs are tailored to meet the needs of each customer and can be tailored to meet specific requirements.

We are committed to providing excellent customer service. Our team is available to answer any questions you may have or provide technical support in a timely manner.



FAQ:

Q&A
  • Q: What is the Brand Name of the Induction Heating Power Supply?
    A: The Brand Name is Canroon.
  • Q: What is the Model Number of the Induction Heating Power Supply?
    A: The Model Number is CR2000.
  • Q: Where is the place of origin of the Induction Heating Power Supply?
    A: The place of origin is Shenzhen, China.
  • Q: What certifications does the Induction Heating Power Supply have?
    A: The Induction Heating Power Supply has CE and ISO9001 certifications.
  • Q: What is the minimum order quantity for the Induction Heating Power Supply?
    A: The minimum order quantity is 1.



160kW Induction Heating Power Supply IP20 Induction Brazing Equipment 2

160kW Induction Heating Power Supply IP20 Induction Brazing Equipment 3
