Protection Level | IP20 | Output Voltage | 14T,0~480V ; 12S,0~260V |
---|---|---|---|
Speed Torque Response | ≤20ms ( Speed-sensor-less Vector Control) | Digital Setting | Within 0.01% Of Set Output Frequency |
Rated Output Current | 2.4-930A | Analog Input | Maximum Frequency X0.025% |
Overload Capacity | G Type. 150% Rated Current 60s, 180% Rated Current 3s: P Type. 120% Rated Current 60s. 150% Rated Current 3s | Frequency | Vector Control: 0~500Hz V/F Control: 0-5000Hz |
Highlight | 260V Single Phase Frequency Drive,260V Vfd Frequency Converter,G Vfd Frequency Converter |
0.4-500KW Rated VFD Variable Frequency Drive With 47-63Hz Input Frequency Digital Setting Within 0.01%
Product Description:

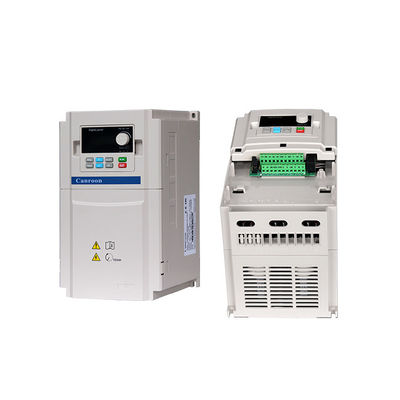

CV900N High Performance Vector Frequency lnverter is a high-performance drive product with fast dynamic torque response, high speed stability accuracy, and excellent control functions. It is mainly used in lifting equipment, natural gas, pulp and paper, ceramics, plastic machinery and other industry equipment. It has analog input maximum frequency X0.025%, overload capacity G type 150% rated current 60s, 180% rated current 3s, P type 120% rated current 60s, 150% rated current 3s, frequency vector control 0~500Hz, V/F control 0-5000Hz, input frequency 47-63Hz, and control mode V/F control, Speed-sensor-less Vector Control (SVC).
Features:
- Product Name: CV900N High Performance Vector Frequency lnverter
- Digital Setting: Within 0.01% Of Set Output Frequency
- Cooling Method: Air Cooling With Fan Control
- Control Mode: V/F Control, Speed-sensor-less Vector Control (SVC)
- Input Frequency: 47-63Hz
- Rated output Current: 2.4-930A
- High Speed Stability & Accuracy: Can easily solve technical and performance problems
Technical Parameters:
Technical Parameters | Details |
---|---|
Digital Setting | Within 0.01% of Set Output Frequency |
Cooling Method | Air Cooling with Fan Control |
Input Frequency | 47-63Hz |
Control Mode | V/F Control, Speed-sensor-less Vector Control (SVC) |
Starting Torque | 150% Rated Torque at 3.0Hz (VF Control)150% Rated Torque at 0.5Hz (Speed-sensor-less Vector Control) |
Rated Output Current | 2.4-930A |
Output Voltage | 14T,0~480V ; 12S,0~260V |
Speed Torque Response | ≤20ms (Speed-sensor-less Vector Control) |
Analog Input | Maximum Frequency X0.025% |
Overload Capacity | G Type. 150% Rated Current 60s, 180% Rated Current 3s: P Type. 120% Rated Current 60s. 150% Rated Current 3s |
Advantages | Adopts advanced vector frequengconversion control technology, can easily solve technical anoperformance problem, High performance vector control, improve precision contro, improve system stability, improve energy efficiency, reduce system complexity, increase production efficiency, high reliability |
Applications:
Canroon's CV900N High Performance Vector Frequency lnverter is high quality and of high power density design. It adopts advanced vector frequency conversion control technology, which makes it reliable and energy efficient. It is equipped with a Smart Energy Saving Function, and is suitable for a wide range of applications.
The CV900N VFD features overload capacity of G Type: 150% Rated Current 60s, 180% Rated Current 3s and P Type: 120% Rated Current 60s, 150% Rated Current 3s. It has an input frequency of 47-63Hz, and a digital setting within 0.01% of set output frequency. The torque response is ≤+0.5% Rated Synchronous Speed, and the control mode is V/F Control, Speed-sensor-less Vector Control (SVC).
The minimum order quantity for the Canroon CV900N VFD is 1. The pricing is negotiable, and it comes in a carton box. The delivery time is 5-7 days, and it has a supply ability of 3000 pieces per week. Payment terms include L/C, T/T, Western Union, and Paypal. It is certified with CE and ISO9001.
Support and Services:
We provide a comprehensive range of technical support and service for VFD Variable Frequency Drive products. Our support team is available to answer your questions and resolve any technical issues you may have.
Our technical support staff is well trained and experienced in troubleshooting, diagnosing, and repairing VFD Variable Frequency Drive products. We understand the importance of maintaining your equipment and strive to provide the best customer service possible.
We provide on-site and off-site technical support, as well as remote access to our support team. We also offer software updates and upgrades, as well as spare parts and accessories. Our service technicians are available to provide maintenance and repair services for your VFD Variable Frequency Drive products.
FAQ:
Q1: What is the Brand Name for Canroon CV900N VFD?
A1: The Brand Name for Canroon CV900N High Performance Vector Frequency lnverter.
Q2: Where is Canroon CV900N VFD manufactured?
A2: Canroon CV900N VFD is manufactured in Shenzhen, China.
Q3: What certifications does Canroon CV900N VFD hold?
A3: Canroon CV900N VFD holds CE and ISO9001 certifications.
Q4: What is the minimum order quantity for Canroon CV900N VFD?
A4: The minimum order quantity for Canroon CV900N VFD is 1.
Q5: What are the payment terms for Canroon CV900N VFD?
A5: The payment terms for Canroon CV900N VFD are L/C, T/T, Western Union, and Paypal.
