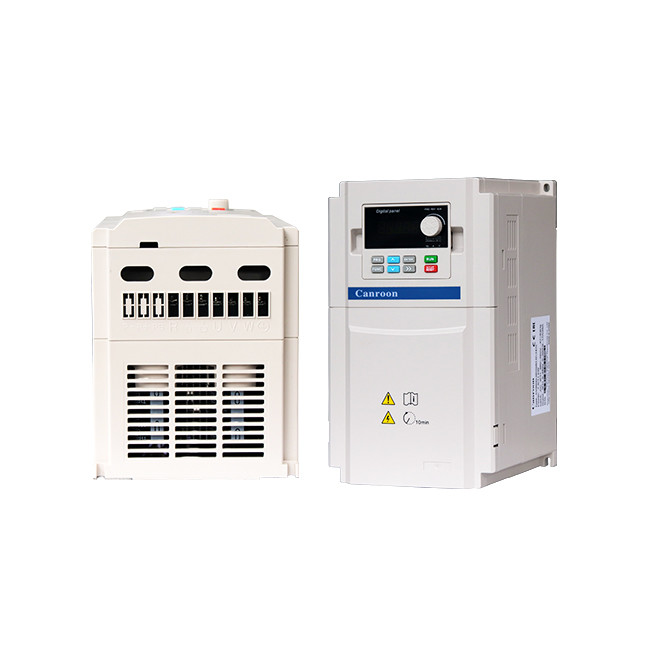

Fan Control VFD Inverter 2.2 Kw
Product Details
| Control Mode | V/F Control, Speed-sensor-less Vector Control(SVC) | Display | LED |
|---|---|---|---|
| Voltage Range | 3-phase AC 320V~480V; 1phase AC 160V~260V | Input Frequency | 47/63Hz |
| Cooling Method | Air Cooling With Fan Control | Counter | A Built-in Counter, Facilitate System Integration |
| Overload Capacity | G Type: 150% Rated Current 60s, 180% Rated Current 3s; P Type: 120% Rated Current 60s, 150% Rated Current 3s | Operation Temperature | -10℃~+40℃ |
| High Light | Fan Control VFD Inverter 2.2 Kw,Fan Control VFD Frequency Inverter,CE VFD Inverter 2.2 Kw |
||
Product Description
Product Description:
VFD Frequency Inverter
The VFD Frequency Inverter is a high performance and high quality inverter that offers a high power density design and is widely used in petrochemical industry, lifting equipment, natural gas industry, etc. It features a protection level of IP20, an input frequency of 47/63Hz, a LED display, an air cooling with fan control, and an output frequency of vector control: 0-500HZ and V/F control: 0-5000Hz.
Features:
- Product Name: CW900N High Performance Vector Frequency Inverter
- Input Rated Voltage: 3-phase AC 380V ; 1-phase AC 220V
- Operation Temperature: -10℃~+40℃
- Display: LED
- Humidity: 5%~95%RH,without Condensing Drops
- Acceleration and Deceleration Time Setting: 0.1s-999.9min Continuous Setting
- Widely used in petrochemical industry, lifting equipment, natural gas and water, etc.
Technical Parameters:
| Parameter | Description |
|---|---|
| Control Mode | V/F Control, Speed-sensor-less Vector Control(SVC) |
| Output Frequency | Vector Control: 0-500HZ V/F Control: 0-5000Hz |
| Allowed Voltage Range | 3-phase (4T) : 320V-460V 1-phase (2S) : 190V~250V |
| Voltage Range | 3-phase AC 320V~480V; 1phase AC 160V~260V |
| Humidity | 5%~95%RH,without Condensing Drops |
| Cooling Method | Air Cooling With Fan Control |
| Operation Temperature | -10℃~+40℃ |
| Input Rated Voltage | 3-phase AC 380V ; 1-phase AC 220V |
| Power Range | 0.4KW-500KW |
| Low Noise Running | Carrier Frequency 2.0kHz-20.0kHz Continuous Adjustable, Minimize Motor Noise |
| Application | Widely used in petrochemical industry, lifting equipment, natural gas, fast dynamic torque response, can easily drive and control motors, the control accuracy is high. |
Applications:
Canroon CV900N VFD Frequency Inverter is a high performance and high quality product with a modular design for fast dynamic torque response and large torque at low frequency. It has a high power density design, and features a built-in counter to facilitate system integration. It is certified with CE and ISO9001, and has an input rated voltage of 3-phase AC 380V and 1-phase AC 220V. The output voltage is 14T,0~480V or 12S,0~260V, and the humidity range is from 5% to 95%RH without condensing drops. The display is LED. The minimum order quantity is 1, and the packaging details are carton box. The delivery time is 3-7days, and payment terms are L/C, T/T, Western Union, or Paypal. The supply ability is 3000 pieces per week, and the price is negotiable.
Support and Services:
VFD Frequency Inverter Technical Support and Service
We provide technical support and service for VFD Frequency Inverters.
We offer a wide range of services to meet the needs of our customers, including:
- Installation and Commissioning of VFD Frequency Inverters
- Troubleshooting and Diagnostic Support
- Preventive Maintenance and Performance Monitoring
- Software Upgrades and Updates
- Repair and Replacement of Components
We provide these services in a timely and cost-effective manner, ensuring that our customers get the most out of their VFD Frequency Inverters.
Packing and Shipping:
Packaging and Shipping for VFD Frequency Inverter:
The VFD Frequency Inverter will be packaged in a cardboard box with foam inserts for extra protection. The box shall be marked with the product name and model for easy identification. Shipping will be done by a reliable courier company or other suitable means.
